Product Name: | Copper Mesh Rolls | Key Words: | Knitted Copper Mesh Rolls |
---|---|---|---|
Material: | Copper Wire, C11000 Copper, Copper Content≥99.95% | Craft: | Through Layered, Spiral Wound Or Compressed, Produces A Tortuous Path For Highly Effective Particle Capture. |
Wire Numbers: | 1, 2, 3, 4 Wires | Shape: | Raschig Ring |
Processing: | Welding, Cutting | Application: | Pest Control,weep Holes,distilling |
High Light: | 3.2m Copper Mesh Rolls,Pest Control Copper Mesh Rolls,Customized Copper Blocker Mesh |

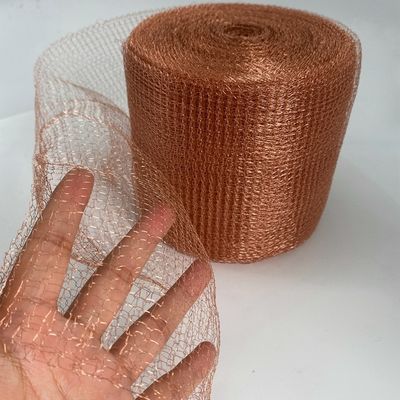

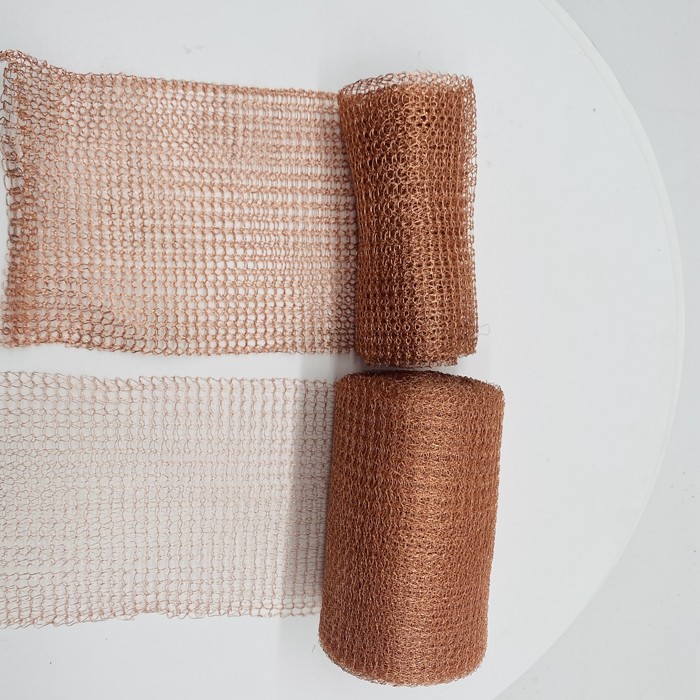

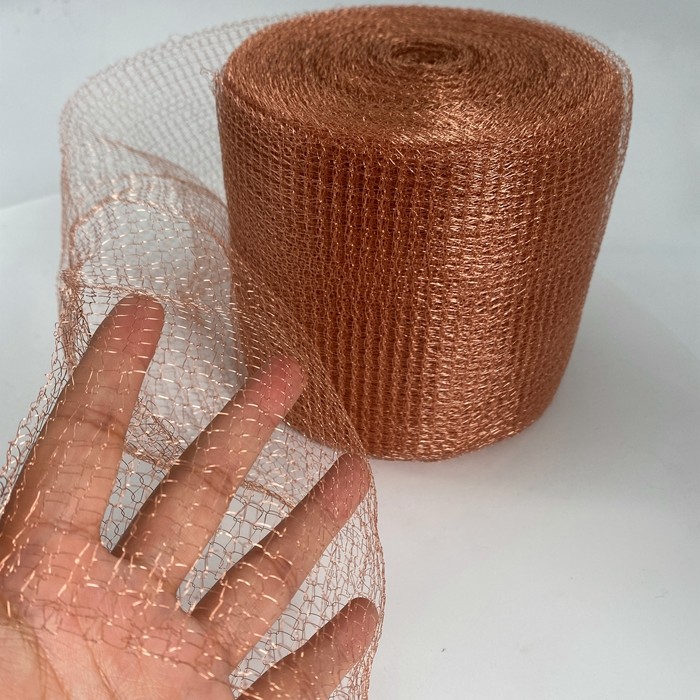

Copper Mesh Rolls has a stable and high strength structure. The unique knitted structure is firm, which can not tear by hands. But you can cut it easily by scissors. When the cleaning mesh works, the flatness provides superb scouring capacities, which can improve the scouring efficiency. The softness can ensure the safety and perfect surface of mechanical parts and prevent any scratches from being left on the surface.
Product Name | Copper Knitted Wire Mesh | Key Words | Knitted Wire Mesh |
---|---|---|---|
Material: | 99.9% Copper Wire | Wire Type: | Round Wire, Flat Wire |
Mesh Width: | 4in, 5in, 6in, As Per Order | Other Name: | Copper Gauze |
Mesh Status: | Plain, Or Crimped | Strand Number: | 1, 2 Or 4. |
Standard Filter Wire Mesh | High Efficiency Type | High Permeation Type | |||
40-100 | 60-150 | 60-100 | 80-100 | 20-100 | 30-100 |
80-200 | 90-250 | 80-150 | 90-150 | 30-150 | 70-140 |
100-350 | 140-400 | 200-400 | - | 36-180 | - |
140-470 | 160-450 | - | - | - | - |
180-550 | 200-700 | - | - | - | - |
As a kind of knitted wire mesh, copper mesh can also be used to make copper demisters, which are required in some special occasions.
Copper Wire Type |
Unit weight |
Specific area for same length copper mesh |
Specific area for same weight copper mesh |
Round wire Φ0.16mm |
a | b | c |
Round wire Φ0.23mm |
2.06a | 1.44b | 0.69c |
Flat wire 0.1*0.4mm |
1.99a | 1.99b | c |
Steps to clean the screws and barrels efficiently with copper gauze and grease.
Step 1: Use a purging compound to clean the extruder. Then use small ball of copper mesh with some silicone grease on it to clean the die face. Also please clean the valve when it is still hot.
Step 2: Remove the die from the extruder head. It is best to clean it by silicone coated copper gauze forced through the die with a wooden dowel.
Step 3: Pull back and forth the copper gauze to complete the cleaning after it pass through the die.
Step 4: Make sure that no residual trace of adhered plastic is left, nor causing a scratch on the metal surface, so the die is thoroughly clean.
Step 5: Remove the hot screw partly, wrap the copper gauze with silicone coating 3 times around the screw, pull back and forth to do the cleaning.
Step 6: Keep sliding the copper gauze when removing the screw out of barrel slowly, until the screw is clean. It takes only 5 minutes for step 5 and 6 operations.
Step 7: Wrap copper mesh at end of a long rod and pass it through the barrel. Then, chuck the rod into power drill, insert fresh gauze and pass back and forth through barrel until clean.
Step 8: Please do all the operations with silicone grease coated copper mesh. Now all parts is clean and ready for reassemble.
Useful shielding to suppress electromagnetic signals passing through flashing windows
1. High strength and stability.
2. High filtration efficiency.
3. Good shielding performance.
4. Corrosion and rust resistance.
5. Acid and alkali resistance.
6. Durable and long service life.
