Emi RFI Shielding 10mm Knitted Wire Mesh Tube

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-98
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Stainless Steel Knitted Wire Mesh Material: Stainless Steel ,copper ,brass
Length: 30-200mm Width: 40-600mm
Hole Size: 4mm*3mm,5mm*6mm, 2mm*4mm,4mm*5mm Etc Wire Numbers: 1, 2, 3, 4 Wires
Hole Shape: Irregular Processing: Welding, Cutting
Application: Filter Type: Woven
High Light:

10mm Knitted Wire Mesh Tube

,

RFI Shielding knitted wire mesh

,

10mm wire mesh emi shielding


Product Description

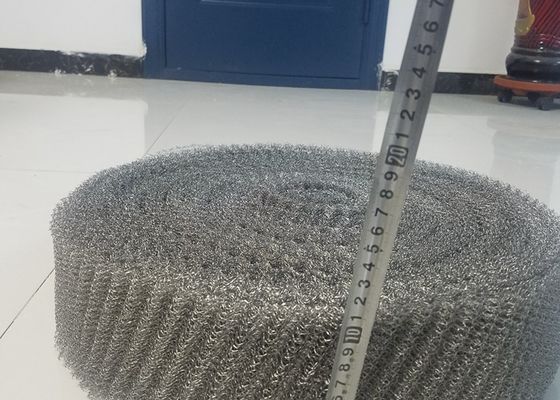

Tube RFI Shielding 10mm Knitted Wire Mesh



Tube RFI Shielding 10mm Knitted Wire Mesh

Description
Material: SS316L Wire Diameter: 0.12mm
Mesh Width: 10 Mm Custom Specification: OK
OEM: OK Weaving Type: Single Wire Knitting
High Light:

0.12mm Knitted Wire Mesh

,

single wire knitting Wire Mesh





10 mm knitted wire mesh tube RFI shielding





Brief introduction of 10 mm knitted wire mesh tube



This is a cable shielding product designed to provide EMI / EMC protection by wrapping around cables. The knitted mesh tube is anti-ultraviolet, weather resistant, anti-fire. Its operation temperature is from -30 ℃ to +105 ℃.



This knitted mesh tube is available in many mesh widths. Welcome your inquiry with private requirement. These knitted wire mesh gaskets, provides an economic solution to high shielding performance applications in the electrical fields RFI / EMI.



It is made on a circular wire knitting machine with a single wire. The mono-filament interlocking-loop construction not only gives strength, but also allows it to confirm to almost any size and shape. During knitting an optional elastomer core can be included into the product to aid compression.



Production Capabilities for 10 mm knitted wire mesh tube



Now we have 6 knitting machines specially for this kind of knitted wire mesh. With different molds we can make many types of shielding knitted mesh as per order. We have large stocks of raw material and some popular mesh types to assure fast delivery. The product consists of a knitted wire that is formed into an all wire profile forming a continuous gasket strip.



Applications of 10 mm knitted wire mesh tube:



The knitted wire mesh tube provides excellent EMI / RFI / EMP shielding between two metallic surfaces, and limits the possibility of corrosion.

RFI / EMI / EMP applications; Cable shielding (wrapping with flat bandage).



Order Options Knitted wire mesh tube Elastomer cored knitted wire mesh
RFI / EMI / EFC shield Yes Yes
EMP survivability Yes Yes
Frequent opening not recommended Yes
Continuous lengths Yes Yes
Cut to length Yes Yes
Fabricated gasket Yes Yes
Mesh over elastomer core No Yes



Availability and Materials of 10 mm knitted wire mesh tube



In continuous lengths, cut to order length or fabricated into finished gaskets.

Various profiles and sizes.

Ready gaskets.

Compressed mesh rings.



Monel Alloy 400, wire diameter 0.12mm

Stainless steel, wire diameter 0.12mm

Plastic wires.



SS304, SS304L, SS316, SS316L, SS201, SS202, SS310S, SS321, Copper, Nickel, Titanium, Duplex 2205, Duplex 2507, NS-80. Also we can handle other materials, but please specify when ordering.

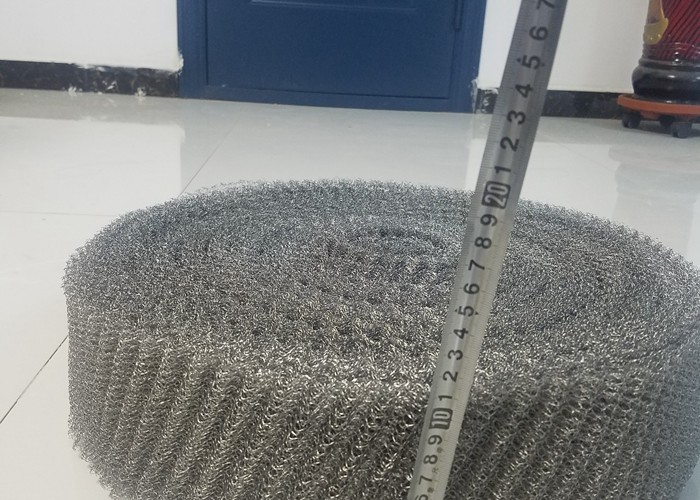

Emi RFI Shielding 10mm Knitted Wire Mesh Tube 0
