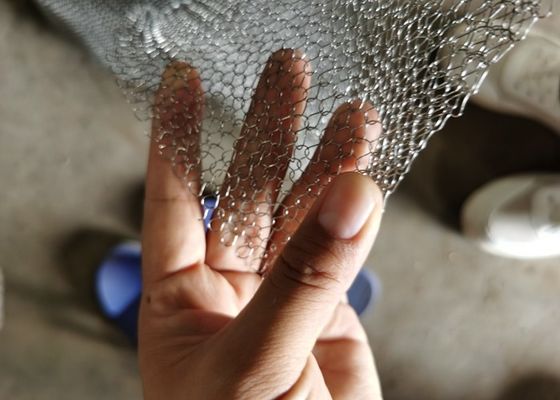

Single 0.25mm Knitted Wire Mesh 431 Type Titanium Wire Mesh Screen

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-105
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Stainless Steel Knitted Wire Mesh Material: Stainless Steel ,copper ,brass
Length: 30-200mm Width: 40-600mm
Hole Size: 4mm*3mm,5mm*6mm, 2mm*4mm,4mm*5mm Etc Wire Numbers: 1, 2, 3, 4 Wires
Hole Shape: Irregular Processing: Welding, Cutting
Application: Filter Type: Woven
High Light:

Single 0.25mm Knitted Wire Mesh

,

431 Type Titanium Wire Mesh Screen

,

Knitted Wire Mesh 431 Type


Product Description

Ti Single 0.25mm 431 Type Knitted Wire Mesh



Ti Single 0.25mm 431 Type Knitted Wire Mesh

Description
Wire Diameter: 0.25mm Application: Gas Liquid Separator
Material: Titanium, Ti, TA2, Etc. Width: 300mm, Or As Per Order
Treatment: Plain, No Treatment Weaving Style: Sing Wire Knitting
High Light:

0.25mm Knitted Wire Mesh

,

0.25mm knitted mesh





Ti single 0.25mm wire knitting mesh 431 type





Characteristic of Ti material in knitting mesh:



Titanium has metallic luster and ductility. The density is 4.5g/cm3. Melting point: 1660 ± 10 ℃. Boiling point 3287 ℃. Valence + 2, + 3 and + 4. The ionization energy is 6.82 ev. Titanium is characterized by low density, high mechanical strength and easy processing. The plasticity of titanium mainly depends on its purity. The more pure titanium is, the more plastic it is. It has good corrosion resistance and is not affected by the atmosphere and sea water. Under normal temperature, it will not be corroded by hydrochloric acid below 7%, sulfuric acid below 5%, nitric acid, aqua regia or dilute alkali solution; only hydrofluoric acid, concentrated hydrochloric acid, concentrated sulfuric acid, etc. can act on it.



Industrial pure titanium: industrial pure titanium has more impurities than chemical pure titanium, so its strength and hardness are slightly higher. Its mechanical and chemical properties are similar to those of stainless steel. Compared with titanium alloy pure titanium, it has better strength and better oxidation resistance than austenitic stainless steel, but its heat resistance is poor. The impurities in TA1, TA2 and TA3 increase in turn, and the mechanical strength and hardness increase in turn, but the plasticity is tough Sex decreased in turn.



The knitted wire mesh material we have in stock.



PP, PTFE, SS304, SS304L, SS316, SS316L, SS201, SS202, SS310S, SS321, Copper, Nickel, Titanium, Duplex 2205, Duplex 2507, NS-80, Monel 400 alloy, Co-knit 904L+fiber glass, Co-knit 316L+ fiber glass, Co-knit 316L+PP flat...

Also we can handle other materials, but please specify when ordering.



Knitted Wire Mesh applications:



Cable wrap

Exhaust seals

Lint traps-alum

Flame arrestors

Ground wire mesh

Oil-bath separators

Copper gauze mesh

Diesel injector filters

Mist elimination pads

Heat exchange media

Insulation blanket mesh

Metal & plastic sponges

Catalytic converter mesh

Oil & air breather elements

Mufflers and silencers, pneumatic tools

Separators for liquid vapor used in chemical and petro-chemical plants



My understanding about the data sheet in HG/T 21618-1998 Wire Mesh Demister.



Type Wire
(mm)
Density
(kg/m3)

Specific Area

(m2/m3)

Void Fraction Feature
SP Flat wire 0.1*0.4 168 529.6 0.9788 Performance between DP & HR
round wire 0.23 368
DP Flat wire 0.1*0.3 186 625.5 0.9765 High efficiency, high pressure drop
round wire 0.19 493.8
HR Flat wire 0.1*0.4 134 422.4 0.9831 Low pressure drop
round wire 0.23 293.9
HP round wire 0.16
(0.08-0.22)
128 403.5 0.9839 It can be used to eliminate or slow down the adverse consequences of vibration.

The data in this sheet are all based on 304 material.



No doubt we produce and supply knitted wire mesh demisters, too. Usually a fast delivery within 3 days can be expected if the order is not too big nor too complex.
