products

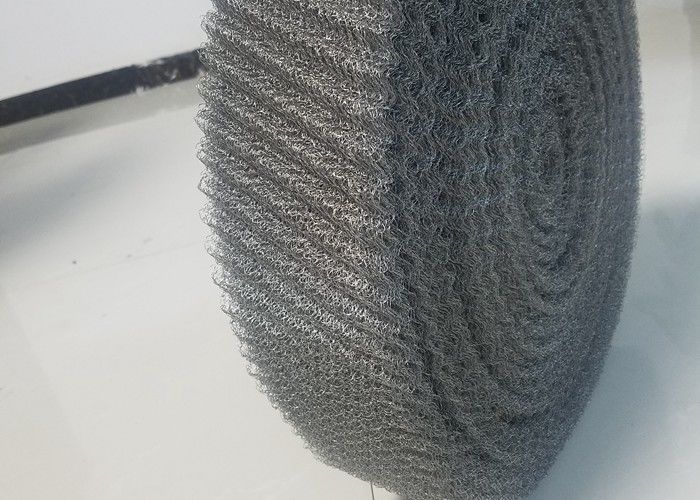

100mm SS321 0.23mm Wire Compressed Knitted Mesh For Gas Liquid Filter Screen

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-108
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Stainless Steel Knitted Wire Mesh Material: Stainless Steel ,copper ,brass
Length: 30-200mm Width: 40-600mm
Hole Size: 4mm*3mm,5mm*6mm, 2mm*4mm,4mm*5mm Etc Wire Numbers: 1, 2, 3, 4 Wires
Hole Shape: Irregular Processing: Welding, Cutting
Application: Filter Type: Woven
High Light:

0.23mm Wire Compressed Knitted Mesh

,

500mm SS Knitted Wire Mesh

,

SS321 Compressed Knitted Mesh


Product Description

100Mm SS 321 0.23Mm Wire Knitted Filter Mesh



100Mm SS 321 0.23Mm Wire Knitted Filter Mesh

Description
Material: SS321, Other Metal Wire Diameter: 0.23mm
Width: 100 Mm, Or As Per Order Type: Plain Or Crimped
Use: For Making Demister Treatment: No Surface Treatment
High Light:

500Mm Knitted Wire Mesh

,

Knitted Filter Wire Mesh





100 mm knitted filter mesh SS 321 0.23 mm wire





How to choose knitted filter mesh?



In order to choose a suitable gas-liquid filter screen, the first thing to know is the material composition of the gas-liquid filter screen. The materials of the gas-liquid filter screen can be roughly divided into three categories: metal, non-metal and mixed metal and non-metal wire.Among them, metals include: stainless steel wire, alloy wire, pure titanium wire, Monel, Inconel, galvanized wire, copper wire, brass wire, etc. Nonmetal category includes: polytetrafluoroethylene (PTFE) and polypropylene, etc. The interweaving categories of metal and non-metal wires include: stainless steel mixed with glass fiber, stainless steel mixed with polytetrafluoroethylene, stainless steel mixed with polypropylene, stainless steel mixed with cotton thread, etc.



Secondly, the purpose of selecting the gas-liquid filter screen should be clear, for example, selecting whether the gas-liquid filter screen is used to make a mesh demister, or a filter screen for gas-liquid separation, gas-water separation, oil-water separation and other devices, or a shielding device for electronic and electrical products against electromagnetic interference and so on. Different use of gas-liquid filter screen, the choice of materials are also very different.



For example, for the gas-liquid filter screen used for demister, it is better to choose metal wire or metal wire and non-metal wire weaving, and if the ventilation system chooses gas-liquid filter screen, it can use non-metal filter screen.



Finally, in order to find the right product, we should refer to the characteristics of the material when selecting the gas-liquid filter screen, ensure that the selected material is usable, and compare several different materials, choose the best one.



The material and width of knitted filter mesh we have in large stock(examples).



Material Mesh Width
PP 100mm, 300mm, 400mm, 500mm, etc.
PTFE 400mm, 500mm
SS304 200mm, 250mm, 400mm, 500mm,1000mm
SS316L 100mm, 300mm, 400mm, 500mm, 600mm
Dup.2205 300mm, 400mm, 500mm
Nickel 300mm
Titanium 300mm, 400mm, 600mm
Monel 300mm, 400mm
Copper 100mm (4 inch), 125mm (5 inch)



A close view of one of our knitting filter mesh workshop:



We have this material because we produce and supply wire mesh mist eliminators ourselves. We know the market and always have many variaties of material ready to sattissfy customers' requirements.

Someone may have the question that why I help a competitor? Well, not only we are in the same industry and have the same products, but also we share the same mission that we shall fabricate and provide the most suitable demister pad to our customer, with high quality and in the shortest time. The market is so big all around the world that no one can serve it alone. Especially that a certain amount of users prefer the goods and service from a nearby contractor.



Yuanqiao is open for all knitted wire mesh buyers.



As a leading producer and user of gas-liquid separation knit mesh, Hualai factory has at least tons of knitting mesh running in hand every month. It covers Material like PP, PTFE, SS304, SS304L, SS316, SS316L, SS201, SS202, SS301S, SS321, Copper, Nickel, Titanium, Duplex 2205, Duplex 2507, NS-80, Monel 400 alloy, Co-knit 904L+fiber glass, Co-knit 316L+ fiber glass, Co-knit 316L+PP flat...More kind of materials are available as per order. Monofilament mesh, double wire mesh, trible wire mesh and more wires per wrap are no problem for us.
