products

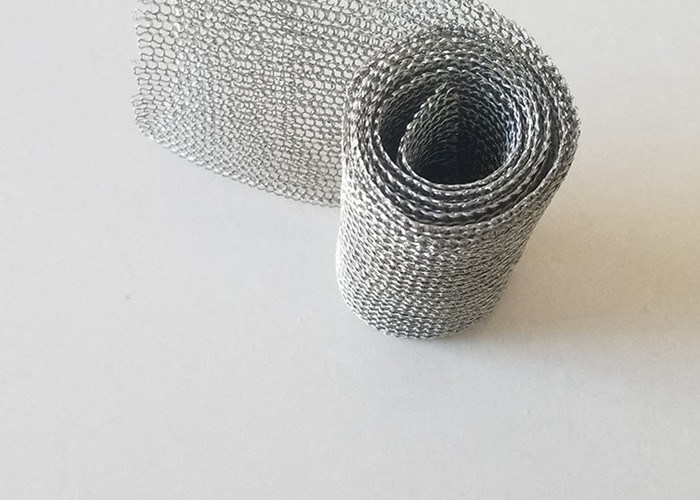

0.23mm 0.25mm Knitted Stainless Steel Wire Mesh Netting

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-115
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Stainless Steel Knitted Wire Mesh Material: Stainless Steel ,copper ,brass
Length: 30-200mm Width: 40-600mm
Hole Size: 4mm*3mm,5mm*6mm, 2mm*4mm,4mm*5mm Etc Wire Numbers: 1, 2, 3, 4 Wires
Hole Shape: Irregular Processing: Welding, Cutting
Application: Filter Type: Woven
High Light:

0.25mm Knitted Stainless Steel Wire Mesh

,

Knitted Stainless Steel Wire Mesh Netting

,

0.23mm stainless steel netting


Product Description

Stainless Steel Knitted Mesh Immediate Reaction Knit Mesh In Carton



Stainless Steel Knitted Mesh Immediate Reaction Knit Mesh In Carton

Description
Material: Stainless Steel Width: Compare Order With Mesh In Stock
Wire Diameter: 0.23mm, 0.25mm, 0.28mm, Etc. Treatment: Corrugation Or None
Weaving Style: Single Wire Knitting Delivery: Air Way Or Express
High Light:

stainless steel knitted wire mesh

,

demister pad







Stainless Steel Knitted Mesh Immediate Reaction Knit Mesh In Carton





Yuanqiao manufactures tons of knitted wire mesh in crimped rolls each month for customers that need to pack their own separation, filtration, or insulation devices. They are delivered in cartons (for small quantity and urgent need), on pallets (for big quantity and sea shipping) and in wooden boxes (for some special mesh) sometimes. The customers will experience superior quality and materials when using Hualai’s knit mesh products.

Because of the knitted, interlocking loop structure of knit wire mesh, there is at least a two-way strength with the needed movement to work the material around complex curves and irregular surfaces. The knitting mesh will not come apart and will stay intact over time, with continuous handling or constant vibration. The knitting mesh is also lower in price than many other materials. It can retain its strength even under high heat temperatures. When greater strength is needed because of frequent removal or stress, or when extreme temperatures are reached and oxidation or atmospheric conditions are critical, 0.28mm (0.011 inch) wire is usually applied.



The knitted wire mesh service range:



Wire mesh demister

Shielding facility of electric appliance

Strainer core in the motorcar and the tractor

Separation, filtration units in a great variety of situation

Car parts such as gasket, shock absorption (avoid shock), sound deadening, exhaust decontaminate



Material of knitted wire mesh and its application:



Materials Main Application Area
SS304 Water solutions, Nitric acid reduced crude petroleum fraction etc.
SS316L Fatty acid reduced crude containing naphthenic acids and corrosive chemicals
Synthetic fiber For corrosive service at moderate temperature
PP(Polypropylene) For corrosive service at temperature up to 70℃
PTFE For corrosive service at temperature of (-190℃, 250℃)
Monel Caustic soda, dilute acid
Nickel Caustic Soda, food products
Copper Freon, alcohol
Aluminium Nitric Acid







The knitted wire mesh material we have in stock.



Located in Anping, China, we enjoy many advantages like convenient material purchasing, lower labor cost, faster courier service, etc. Knitted wire mesh material we usually use: PP, PTFE, SS304, SS304L, SS316, SS316L, SS201, SS202, SS310S, SS321, Copper, Nickel, Titanium, Duplex 2205, Duplex 2507, NS-80, Monel 400 alloy, Co-knit 904L+fiber glass, Co-knit 316L+ fiber glass, Co-knit 316L+PP flat...



0.23mm 0.25mm Knitted Stainless Steel Wire Mesh Netting 0
