350Y 350m2 Distillation Metal Tower Packing Custom Shape

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-178
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Structured Tower Packing Material: Stainless Steel 316
Shape: Mesh Corrugated Thickness: 100mm, 150mm, Or As Per Order
Sections: 6/8, Or According To Your Required Type: Metal Structured Packing
Shape & Size: Φ1700-Φ630 Φ2200-Φ820 Surface Area: 250㎡/m3,500㎡/m3,700㎡/m3
Application: Tower Packing, Adsorption, Scrubbing, Stripping, All Kinds Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

350Y 350m2 distillation tower packing

,

350m2 Distillation Metal Tower Packing

,

350Y Distillation Metal Tower Packing


Product Description

350Y Tower 350m2 Distillation Packing Custom Shape And Layer Height



Yuanqiao  made 500Y metal sheet structured packing 5000 mm diameter



350Y tower packing customer required shape and layer height



1. Yuanqiao 350Y tower packing uses the industry standard corrugated perforated and embossed sheet metal design to provide efficient vapour-liquid contact. The style of the embossed surface has been optimised to provide maximum wetability and numerous perforations enhance cross mixing of the process fluids. Type Y has a crimp angle of 45° and type X 30°. Suitable liquid irrigation range from below 0.5 up to 200 m3/m2.hr.



2. Yuanqiao 350Y tower packing and similar products list (part):



Packing Style Material Application Crimp Angle Surface Area Closest Equivalent Styles (similar capacity/efficiency)
HL125Y Sheet Metal, embossed General (high capacity) 45° 125 125Y
HL250Y Sheet Metal, embossed General 45° 250 250Y
HL350Y Sheet Metal, embossed High efficiency 45° 350 350Y
HL125X Sheet Metal, embossed High Liquid Capacity 60° 125 125X
HL250X Sheet Metal, embossed High Capacity 60° 250 250X
HL350X Sheet Metal, embossed High Capacity 60° 350 350X
HL252Y Sheet Metal, embossed High Performance 45° 250 M252Y
HL700Y wire gauze Wire Gauze High Efficiency 45° 750 CY
HL500X wire gauze Wire Gauze High Efficiency 60° 500 BX



3. 350Y tower packing fixing and installation



It is a very basic and simple procedure. Once we have optimized the dimensions of the packing we must ensure that the inside of the column is clean and has no weld joints or bulges to obstruct the installation. The supporting structure can be made of two cross bars at 90 degrees to each other and in larger columns the same construction must be repeated at a pitch of 150mm.

Once the support is in place, successive modules of Hualai structured packing must be inserted from the top – down. Normally a wooden disc (having a slightly small diameter than the packing) is mounted on a pole and used to push each segment down to their position due to the very narrow diameter of the column.


4. 350Y corrugated perforated packing



is one main type of Hualai structured packings made of metal sheets. The punched and grooved surface structure provides ideal contact between gas and liquid flow.



Yuanqiao  has years of engineering experience with a variety of structured column packings in different industrial applications. Moreover, we have frequent co-operations with famous universities and technical engineering companies in China.

Resulting from these valuable assets, we have produced range of structured packings suitable for engineering systems that provide optimum column performance. As a general rule, new columns should be sized to operate at 80% of capacity at the maximum design loading.



5. 350Y tower packing advantage:



Higher capacity

Reduced liquid hold-up

Excellent liquid spreading characteristics

Lower pressure drop through the column

Higher efficiency in the same tower height

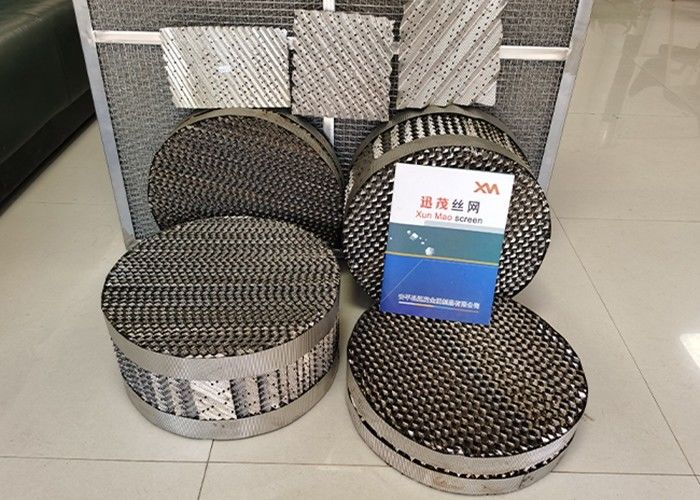

350Y 350m2 Distillation Metal Tower Packing Custom Shape 0
