0.12mm Small 500Y Wire Mesh Structured Packing In Cooling Tower

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-180
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Structured Tower Packing Material: Stainless Steel 304
Shape: Mesh Corrugated Thickness: 100mm, 150mm, Or As Per Order
Sections: 6/8, Or According To Your Required Type: Metal Structured Packing
Shape & Size: Φ1700-Φ630 Φ2200-Φ820 Surface Area: 250㎡/m3,500㎡/m3,700㎡/m3
Application: Tower Packing, Adsorption, Scrubbing, Stripping, All Kinds Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

500Y Wire Mesh Structured Packing

,

500Y Wire Mesh cooling tower packing

,

0.12mm Small cooling tower packing


Product Description

0.12mm Small Diameter 500Y Structured Packing In Distillation Column





1. 500Y metal sheet column packing



500Y metal structured packing includes pore plate corrugated packing, plate mesh corrugated packing, piercing hole plate corrugated packing, mesh corrugated packing and annular corrugated packing.

Orifice plate corrugated packing is a regular packing which is assembled by holes and large ripples on the surface of metal sheet. It has the characteristics of small resistance, uniform gas-liquid distribution, high efficiency, large flux and unobvious amplification effect. It is used in negative pressure, normal pressure and pressure operation.



2. 500Y metal sheet column packing and other types' datasheet:



Structural dimension and characteristic parameters of stainless steel orifice corrugated packing.

Item Unit 125X 125Y 250X 250Y 350X 350Y 500X 500Y
corrugation height h mm 24.0 11.5 8.4 6.0
corrugation inclination θ (°) 30 45 30 45 30 45 30 45
corrugation distance 2B mm 39.6 19.0 14.0 9.9
corrugation angle β (°) 79.0 79.1 79.6 79.0
void fraction ε δ=0.15mm % 99.4 98.6 98.0 97.2
δ=0.12mm % 99.5 98.9 98.4 97.8
δ=0.10mm % 99.6 99.1 98.7 98.2
Perforated hole diameter d0 mm 4.5 4.5 4.0 4.0
Opening rate σ % 8.5-9.5 8.5-9.5 9.0-10.0 9.0-10.0
radius of curvature of the top circle of corrugation angle R mm ≤2.0 ≤1.4 ≤0.9 ≤0.5

Note: The influence of opening rate on the plate is not calculated



3. 500Y Distillation Packing History.



Structured packing was first introduced to the market in 20th century. Its distinct performance advantages became clear very quickly and lead it to transform the mass transfer market after then. It is now the preferred packing for many applications.

Hualai’s structured packing is formed from vertical sheets of corrugated metal with the angle of the corrugations reversed in adjacent sheets to form a very open structure with inclined flow channels. To simplify installation, it is delivered in preformed segments that are sized to fit through the vessel manways. A high surface area will only provide efficient mass transfer if it is effectively used to increase vapour-liquid contact. So a variety of surface enhancements are employed to promote liquid spreading over the packing surface. The low resistance to vapour flow together with efficient use of available surface tends to give structured packings significant performance advantages over random packings in high vapour rate/low liquid rate systems.



4. Hualai Distillation Packing Factory



Hualai has years of engineering experience with a variety of structured column packings in different industrial applications. Moreover, we have frequent co-operations with famous universities and technical engineering companies in China.

Resulting from these valuable assets, we have produced range of structured packings suitable for engineering systems that provide optimum column performance.

Hualai structured packing uses the industry standard corrugated perforated and embossed sheet metal design to provide efficient vapour-liquid contact. The style of the embossed surface has been optimised to provide maximum wetability and numerous perforations enhance cross mixing of the process fluids. Type Y has a crimp angle of 45° and type X 30°. Suitable liquid irrigation range from below 0.5 up to 200 m3/m2.hr.

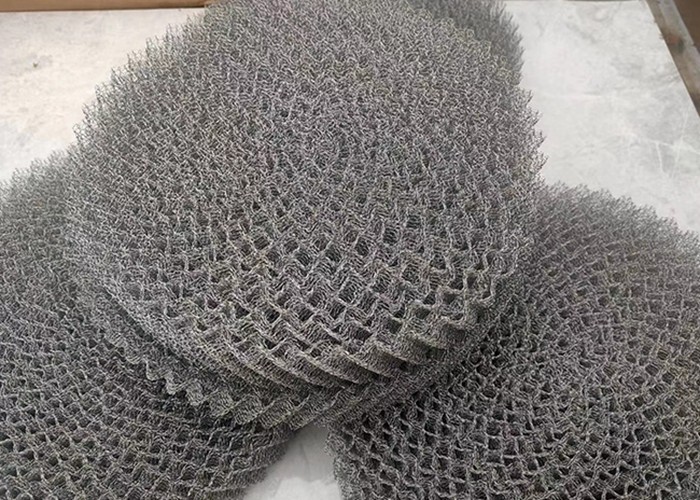

0.12mm Small 500Y Wire Mesh Structured Packing In Cooling Tower 0
