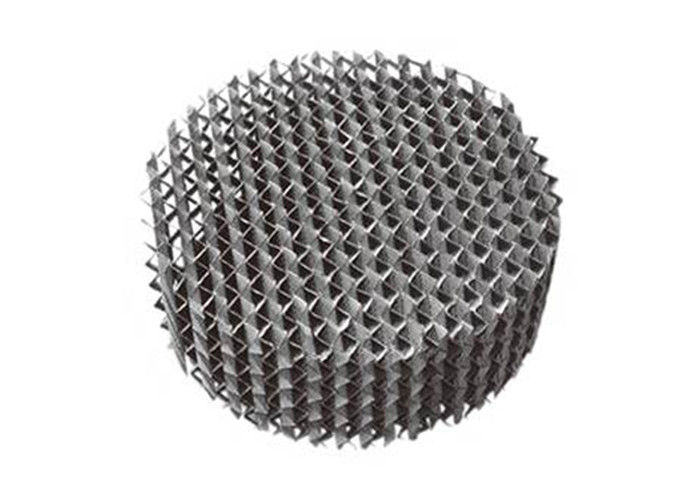

0.1mm Metal Plate Structured Tower Packing 350Y Custom Fabricated Shape Size

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-182
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Structured Tower Packing Material: Stainless Steel 316
Shape: Mesh Corrugated Thickness: 100mm, 150mm, Or As Per Order
Sections: 6/8, Or According To Your Required Type: Metal Structured Packing
Shape & Size: Φ1700-Φ630 Φ2200-Φ820 Surface Area: 250㎡/m3,500㎡/m3,700㎡/m3
Application: Tower Packing, Adsorption, Scrubbing, Stripping, All Kinds Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

0.1mm Metal Plate Structured Tower Packing

,

Structured Tower Packing 350Y

,

0.1mm Metal Structured Tower Packing


Product Description

0.1mm Metal Plate Tower 350Y Distillation Packing Custom Fabricated Shape Size



1. 350Y metal plate tower packing, through regular arrangement of components, uniform and regular gas-liquid flow channel is formed, so that gas-liquid contact in an orderly manner, so as to strengthen mass transfer, reduce amplification effect, reduce gas flow pressure drop and low liquid holding capacity.



2. Yuanqiao structured packing types



Item Unit 125X 125Y 250X 250Y 350X 350Y 500X 500Y
corrugation height h mm 24.0 11.5 8.4 6.0
corrugation inclination θ (°) 30 45 30 45 30 45 30 45
corrugation distance 2B mm 39.6 19.0 14.0 9.9
corrugation angle β (°) 79.0 79.1 79.6 79.0
void fraction ε δ=0.15mm % 99.4 98.6 98.0 97.2
δ=0.12mm % 99.5 98.9 98.4 97.8
δ=0.10mm % 99.6 99.1 98.7 98.2
Perforated hole diameter d0 mm 4.5 4.5 4.0 4.0
Opening rate σ % 8.5-9.5 8.5-9.5 9.0-10.0 9.0-10.0
radius of curvature of the top circle of corrugation angle R mm ≤2.0 ≤1.4 ≤0.9 ≤0.5

Note: The influence of opening rate on the plate is not calculated



3. Metal plate structured packing standard introduction.



3.1 This standard specifies the requirements for marking, specification and characteristics, materials, manufacturing requirements, inspection and acceptance, marking, packaging, storage and transportation of stainless steel orifice corrugated packing products, as well as the calculation of characteristic parameters of orifice corrugated packing.

3.2 The corrugated packing with stainless steel orifice plate is suitable for gas-liquid mass transfer separation tower equipment, and the applicable temperature of the packing is - 200 ~ 400 ℃.

3.3 The structured packing is suitable for the clean gas-liquid system without solid particles or suspended solids or easy to self assemble.



4. 350Y structured packing used in distillation column.



Distillation is a method to separate liquid mixture with high purity by using reflux. It is a widely used liquid mixture separation operation in industry, and is widely used in petroleum, chemical, light industry, food, metallurgy and other departments. Distillation operation is classified according to different methods. According to the operation mode, it can be divided into continuous distillation and batch distillation; according to the composition of the mixture, it can be divided into binary distillation and multi-component distillation; according to whether the additives affecting the vapor-liquid equilibrium are added to the mixture, it can be divided into ordinary distillation and special distillation (including extractive distillation, azeotropic distillation and salt-adding distillation); if the distillation process is accompanied by distillation, it can be divided into two types Chemical reaction is called reactive distillation
In the operation of packed tower, the liquid drops from top to bottom along the structured packing surface, and the rising vapor contacts with each other. Therefore, the packing surface is the place for mass exchange and heat exchange.



5. What are the necessary structured pacing conditions for high vacuum distillation column?


1) The surface area per unit volume of structured packing should be large;
2) The free volume of the liquid phase in contact with the gas phase must be large;
3) The resistance to steam should be small (i.e. the cross-sectional area of the gap should be large);
4) Chemical resistance to both liquids and vapors;
5) The density should be small;
6) The price per unit of effective area should be small
