Yuanqiao CY 700 Structured Column Packing In Distillation Column OEM

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-119
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Metal Structured Packing Material: 304 Stainless Steel
Thickness: 150mm, Or As Per Order Shape: Mesh Corrugated
Sections: 6/8, Or As Per Order Type: Metal Structured Packing
Shape & Size: Φ1700-Φ630 Φ2200-Φ820 Surface Area: 250㎡/m3,500㎡/m3,700㎡/m3
Application: Tower Packing, Adsorption, Scrubbing, Stripping, All Kinds Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

CY 700 Structured Column Packing

,

OEM Structured Column Packing

,

Structured Packing In Distillation Column OEM


Product Description

Yuanqiao OEM Service CY 700 Metal Wire Mesh Structured Packing Data Sheet

Description
Layer Height: 100mm, 150mm, 200mm Per Layer Material: SS304, SS316L, Other
OEM: Available Surface Treatment: Corrugation
Perforation: Optional Size: Specified By Client
High Light:

wire mesh packing

,

structured packing distillation column





Yuanqiao OEM service CY 700 metal wire mesh structured packing data sheet



Materials of Construction



The most common material used for Hualai structured column packing is SS 304L and SS 316L. However Hualai manufactures this solely based on our customers’ requirements and can also be made from other materials based on special requests. Other materials like Titanium, duplex 2205, copper, etc. are also no problem with us.

Uniform Liquid Distribution

In order to achieve even liquid distribution over the packing it is a must to have a good liquid distributor to maximize the interaction of the liquid and vapor. However if the packing height exceeds 3 meters we recommend using an intermediate liquid re-distributor as well for even flow.



Yuanqiao wire gauze structured packing is the preferred packing in distillation service for deep vacuum and low liquid rate applications. The characteristic of lowest pressure drop per theoretical stage makes wire gauze packing the preferred device for processing specialty chemicals, pharmaceuticals and temperature-sensitive materials.

Wire gauze packing is generally used in small to medium diameter columns to achieve the maximum number of theoretical stages in the minimum column height. Because of the capillary effect, the wire mesh material provides an extremely wettable surface resulting in excellent mass transfer efficiency particularly at very low liquid rates.



Yuanqiao wire mesh structured packing products list (normal):



Type Specific Surface Bulk Density Void Ratio obliquity ΔP Liquid spray density Liquid holdup Theo. Plate HETP F factor Application
(m2/m3) (kg/m3) (%) Angle (Pa/plate) (m3/m2*h) % (piece/m) mm (m/s)*(kg/m3)0.5
250(AX) 250 45 98.5 30 10-40 0.2-12 2 2.5-3 100 2.5-3.5 Precision distillation with few theoretical series
500(BX) 500 95 96.9 30 50 0.2-12 4.2 4-5 200 2.0-2.4 Vacuum Distillation of Thermosensitive and Difficult Separation Systems
700(CY) 700 130 95.6 45 67 0.2-12 6 8-10 333-400 1.5-2.0 Isotopic mixture, isomeric mixture separation

①The data are based on 0.12mm wire, stainless steel material. Applicable temperature (-200—400)℃. 0.15mm and 0.17mm wire are also available.

②Metal wire mesh corrugated packing is suitable for clean gas-liquid system without solid particles or suspended solids or not easy to self-assemble.



Benifits of Yuanqiao structured packing:



Lower pressure drop through the column

■Lower botoms temperature for heat sensitive systems

■Higher relative volatility for difficult separations

■Lower energy consumption

■Reduced foaming tendency

Higher efficiency in the same tower height

■Large number of theoretical stages required

■Reduced reflux requirement

Higher capacity

■Reduced vessel diameter

■Increased operating rates

Excellent liquid spreading characteristics

■Improved efficiency

■Offshore applications subject to permanent tilt and motion

Reduced liquid hold-up

■Smaller amounts of polymer inhibitor

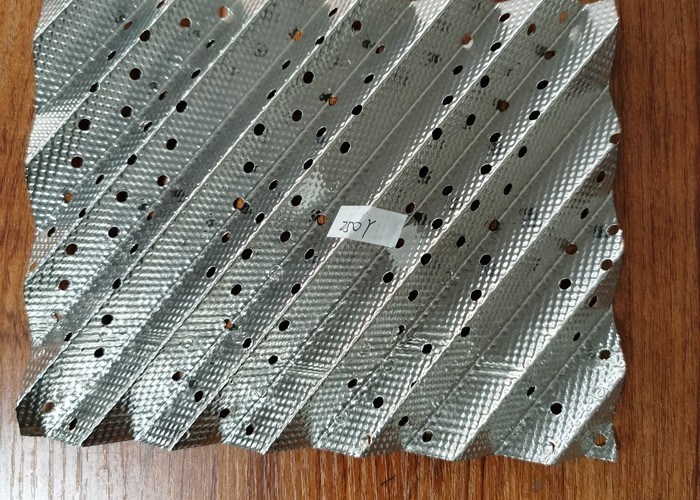

Yuanqiao CY 700 Structured Column Packing In Distillation Column OEM 0
