SS316L 500X Metal Structured Packing Material Custom Size 400-100mm

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-120
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Metal Structured Packing Material: 304 Stainless Steel
Thickness: 150mm, Or As Per Order Shape: Mesh Corrugated
Sections: 6/8, Or As Per Order Type: Metal Structured Packing
Shape & Size: Φ1700-Φ630 Φ2200-Φ820 Surface Area: 250㎡/m3,500㎡/m3,700㎡/m3
Application: Tower Packing, Adsorption, Scrubbing, Stripping, All Kinds Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

500X Metal Structured Packing Material


100mm structured packing material


SS316L 500X Metal Structured Packing

Product Description

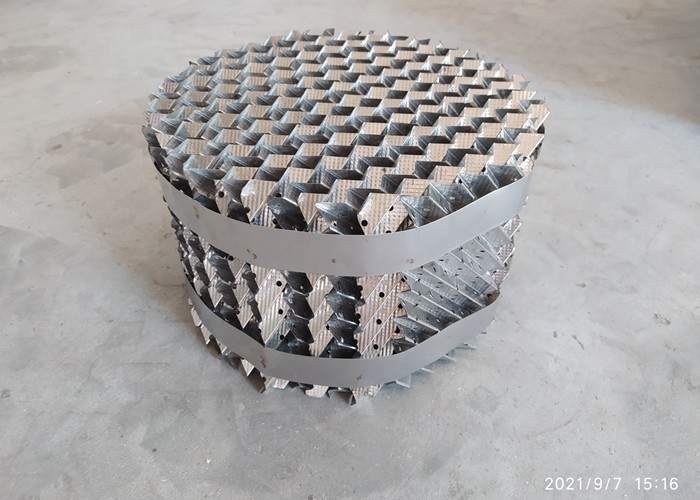

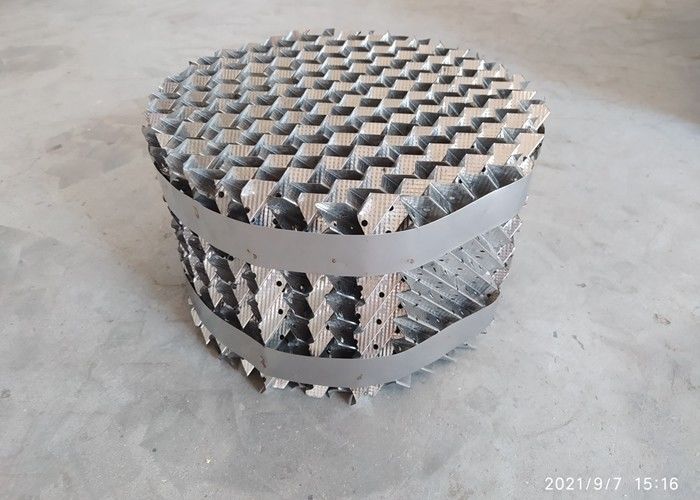

SS316L 500X Wire Mesh Structured Packing Custom Size 400 - 100mm Fast Delivery

Material: SS304, SS316L Height: 100mm, 150mm, 200mm Per Layer
Surface Treatment: Corrugation Perforation: Optional
Size: Specified By Client OEM: Available
High Light:

wire mesh packing


stainless steel packing



500X wire mesh structured packing custom size 400 - 100mm fast delivery


Yuanqiao wire gauze structured packing is the preferred packing in distillation service for deep vacuum and low liquid rate applications. The characteristic of lowest pressure drop per theoretical stage makes wire gauze packing the preferred device for processing specialty chemicals, pharmaceuticals and temperature-sensitive materials.

Wire gauze packing is generally used in small to medium diameter columns to achieve the maximum number of theoretical stages in the minimum column height. Because of the capillary effect, the wire mesh material provides an extremely wettable surface resulting in excellent mass transfer efficiency particularly at very low liquid rates.


Materials of Construction


The most common material used for Hualai structured column packing is SS 304L and SS 316L. However Hualai manufactures this solely based on our customers’ requirements and can also be made from other materials based on special requests. Other materials like Titanium, duplex 2205, copper, etc. are also no problem with us.

Uniform Liquid Distribution

In order to achieve even liquid distribution over the packing it is a must to have a good liquid distributor to maximize the interaction of the liquid and vapor. However if the packing height exceeds 3 meters we recommend using an intermediate liquid re-distributor as well for even flow.


Yuanqiao wire mesh structured packing products list (normal):


Type Specific Surface Bulk Density Void Ratio obliquity ΔP Liquid spray density Liquid holdup Theo. Plate HETP F factor Application
(m2/m3) (kg/m3) (%) Angle (Pa/plate) (m3/m2*h) % (piece/m) mm (m/s)*(kg/m3)0.5
250(AX) 250 45 98.5 30 10-40 0.2-12 2 2.5-3 100 2.5-3.5 Precision distillation with few theoretical series
500(BX) 500 95 96.9 30 50 0.2-12 4.2 4-5 200 2.0-2.4 Vacuum Distillation of Thermosensitive and Difficult Separation Systems
700(CY) 700 130 95.6 45 67 0.2-12 6 8-10 333-400 1.5-2.0 Isotopic mixture, isomeric mixture separation

①The data are based on 0.12mm wire, stainless steel material. Applicable temperature (-200—400)℃. 0.15mm and 0.17mm wire are also available.

②Metal wire mesh corrugated packing is suitable for clean gas-liquid system without solid particles or suspended solids or not easy to self-assemble.


Benifits of Hualai structured packing:


Lower pressure drop through the column

■Lower botoms temperature for heat sensitive systems

■Higher relative volatility for difficult separations

■Lower energy consumption

■Reduced foaming tendency

Higher efficiency in the same tower height

■Large number of theoretical stages required

■Reduced reflux requirement

Higher capacity

■Reduced vessel diameter

■Increased operating rates

Excellent liquid spreading characteristics

■Improved efficiency

■Offshore applications subject to permanent tilt and motion

Reduced liquid hold-up

■Smaller amounts of polymer inhibitor


Projects applying wire mesh structured packing

  • Triformaldehyde was refined and separated by 500X corrugated wire mesh packing tower. The purity of the product is more than 99.9% and the impurity content is less than 300 ppm.
  • 500 type wire mesh structured packing used in Phenol distillation column, instead of part of Cascade Mini Ring.
  • Vacuum distillation unit for dimethyl terephthalate, with 500 wire gauze packing.
  • Pentaerythritol production device, 500 type wire mesh structured packing tower.
  • Nitrotoluene isomers are separated by vacuum distillation with 700Y corrugated wire mesh packing.
  • Ethylene oxide technology upgrades, using 700Y metal mesh corrugated packing and 250Y metal orifice corrugated packing instead of two floating valve towers

SS316L 500X Metal Structured Packing Material Custom Size 400-100mm 0


SS316L 500X Metal Structured Packing Material Custom Size 400-100mm 1
