Knitmesh Demister Mist Eliminator 3000mm-5000mm With Cellular Structure

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-110
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Demister Mist Eliminator Material: Metal And Plastic
Shape: Donut, Circle Thickness: 100mm, 150mm, Or As Per Order
Sections: 6/8, Or As Per Order Application: Filtering & Separation
Grids: 25*3mm Flat Bar Shape & Size: Φ1700-Φ630 Φ2200-Φ820
Type: Filter Elements Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

Demister Mist Eliminator 3000mm

,

Cellular Structure Demister Mist Eliminator

,

5000mm Knitmesh Demister Mist Eliminator


Product Description

YQ-144 Demister Mist Eliminator 3000mm - 5000mm With Cellular Structure



yq-144 Demister Mist Eliminator 3000mm - 5000mm With Cellular Structure

Description
Size:As Per OrderMaterial:Stainless Steel, Alloy, Other Metal Or Plastic
Product Name:Mesh Pad Mist EliminatorApplication:Distillation Column
Sections:As Per Tower ManwayInstallation Drawing:Available
High Light:

mesh pad mist eliminator

,

wire mesh pad







HL-144 Demister Mist Eliminator 3000mm - 5000mm With Cellular Structure

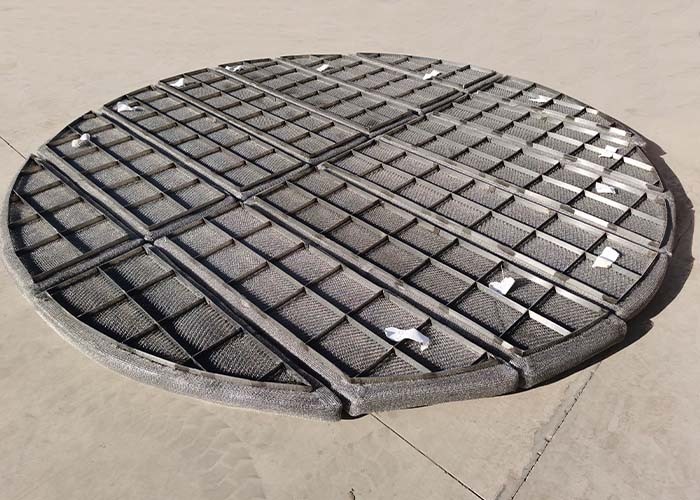

Mesh pad demister, which are used in removing droplets entrained in flow gas, is constructed from knitted wire mesh with a cellular structure. The knit mesh are made into a mesh pad with determinate thickness and diameter, through which the two phases liquid-gas or liquid-vapor are disengaged.

From the statistic data obtained both in laboratory tests and industrial applications, it shows that the proper designed mesh pad demister allows a separation of liquids carried by gas with efficiency reaching 99.9%.





What can Yuanqiao factory do for you in the mesh pad demister?



1. Demister is tailor made to suit for specific vessel dimensions and configuration.

2. provides wide variety of material to suit for even the most corrosive process environments.

3. factory can supplies either mesh pad only, or complete demister with top and bottom supporting grids for direct installation in vessels.

4. Sectional construction for easy handling and access through man ways.

5. Complete accessory pack including support ring and beam can be provided when required.



Metal Wire Mesh Pad Demister Type and Applications



Wire Dia.

Mm

Mesh Density

Kg/m3

Surface Area

M2/m3

Normal Micron RatingApplication
0.151956503Very high efficiency in clean service
0.151454804Fine droplet removal in clean service
0.151123755General purpose in clean service
0.281953555Optimum efficiency & pressure drop
0.281703106General purpose not totally clean
0.281452658Heavy Duty e.g. Oil & Gas Separators
0.2811020010Light fouling
0.288014512Moderate fouling




Knitmesh Demister Mist Eliminator 3000mm-5000mm With Cellular Structure 0
