0.11mm - 0.15mm Knitted Wire Mesh Tape Acid / Alkali Resistance For Cable Shielding

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-107
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per day
Detail Information
Product Name: Knitted Wire Mesh Tape Key Words: Knitted Wire Mesh Tape For Cable Shielding
Material: Stainless Steel Wire, Copper Wire, Nickel Wire, Monel Wire, Aluminum Wire And Other Alloy Wire Wire Numbers: 0.11mm, 0.12mm, 0.14mm, 015mm And Other Sizes Can Be Customized.
Shape: Raschig Ring Processing: Welding, Cutting
Application: Electrical And Electronic Cables For Cable Shielding, Jointing And Grounding Finish: Bare, Tin-plating
High Light:

ISO9001 Knitted Wire Mesh Tape

,

0.15mm Knitted Wire Mesh Tape

,

Shielding Wire Mesh Knitted


Product Description

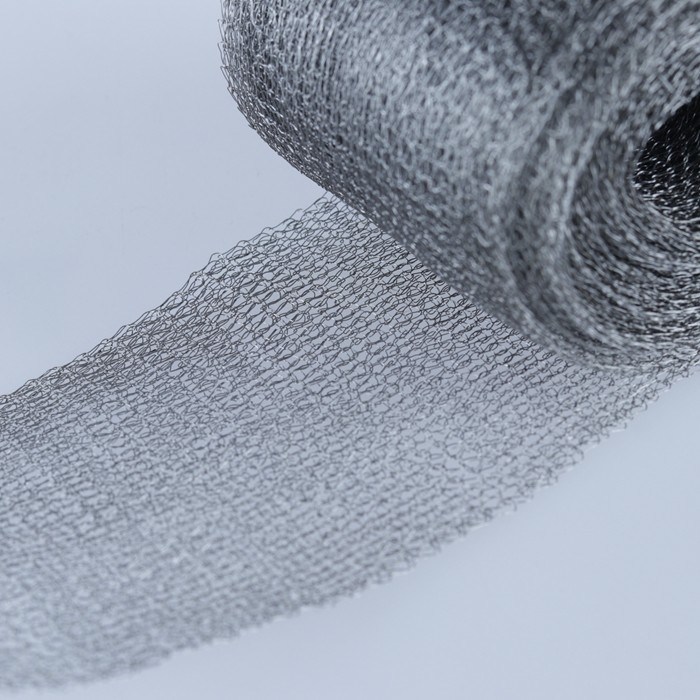

Knitted Wire Mesh Tape For Cable Shielding

Knitted Wire Mesh Tape​ Introduction

Knitted wire mesh tape, also called cable wrapping, is a kind of knitted wire mesh roll, which the various fine wires are knitted into a double-thickness flat stockings, the knitted wire mesh can be rolled up directly, or it can be rolled onto the paper reels or plastic reels.



The material of knitted wire mesh tape has a wide range of selection. The main materials of knitted wire mesh tape can be stainless steel, copper, monel, nickel and other alloy wires. All the materials are corrosion resistance and high temperature resistance. They have excellent shielding performance in the applications.



Knitted wire mesh tape is widely used to shield, ground and statically discharge cables or harness entire bundles of cables. Knitted wire mesh tape has excellent shielding performance, which can be used in the various fields.


Knitted Wire Mesh Tape​ specifications



Product Name

Knitted Wire Mesh Tape

Key Words

Knitted Wire Mesh Tape For Cable Shielding

Material

stainless steel wire, copper wire, nickel wire, monel wire, aluminum wire and other alloy wire

Wire diameter

0.11mm, 0.12mm, 0.14mm, 015mm and other sizes can be customized.

Width

6mm, 13mm, 25mm, 38mm, 50mm, 75mm, 100mm, 175mm, 200mm, 500mm, 1000mm and other widths are available.

Length

commonly is 10m and other lengths can be customized according to your requirements.

Roll type

flatten type and ginning type.

Features of Knitted Wire Mesh Tape​

  • A wide range of material selection.
  • Corrosion and rust resistance.
  • High temperature resistance.
  • Acid and alkali resistance.
  • Various width and wire diameters for choice.
  • Excellent shielding performance.
  • Easy to install and uninstall.
  • Durable and long service life.
  • Crimped tapes are available for greater thicknesses.



Applications of Knitted Wire Mesh Tape​



  • Knitted wire mesh tape is commonly used as knitted wire mesh shielding for EMI/RFI shielding. It can be used in electrical and electronic cables for cable shielding, jointing and grounding. It can supply excellent shielding performance to guarantee the safety.

  • Note: for the best shielding performance, you should make sure there is 50% overlap on the cables.
