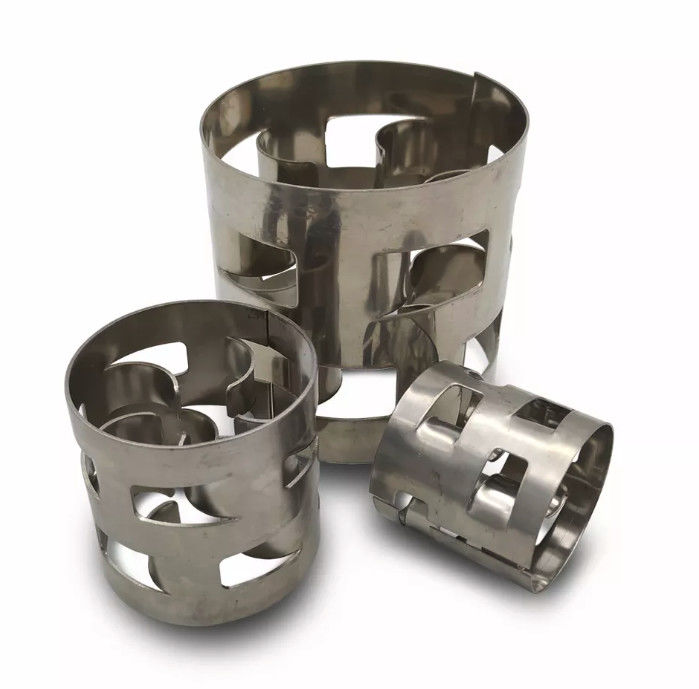

Distillation Column 304 Metal Random Packing Pall Ring 25×25×0.4mm

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-212
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Metal Random Packing Material: Stainless Steel 304, 316L, Etc.
Model Number: Metal Intalox Saddles Shape: Raschig Ring
Size: 16# 25# 40# 50# 70# Application: Absorption , Scrubbing , Stripping
Type: Catalyst Beds Keyword: Metal Rashing Ring
High Light:

Distillation Column Metal Random Packing


Packing Pall Ring 25×25×0.4mm


304 Metal Random Packing Pall Ring

Product Description

Distillation Column 304 Metal Random Packing Pall Ring 25 × 25 × 0.4 Mm

Product Name: Metal Random Packing Pall Ring Size: 1 In / 25 Mm
Wall Thickness: 0.4 Mm Material: SS304
Material Certificate: Yes Sample: Free Sample
Data Sheet: Available OEM: Yes
Application: Distillation Tower Packing Warranty: Lifetime Online Service
High Light:

distillation column pall ring packing


25mm pall ring packing


25mm packing pall ring



304 Distillation Column Pall Ring Packing 25 × 25 × 0.4 mm



1. Metal Pall Ring Basic Info:

Pall ring packing has the advantages of large capacity, small resistance, high separation efficiency and large operation flexibility. Under the same pressure reduction, the treatment capacity can be more than 50% larger than that of raschig ring. At the same treatment capacity, the depressurization can be reduced by half and the mass transfer efficiency can be increased by about 20%. The tower height can also be reduced, and the use of pall ring can save 20% - 40% packing volume compared with raschig ring.


2. 25 mm Metal Pall Ring Specification:



Dia.*Height (mm)



Pack No.


Pack Density


Specific Area (m2/m3)

Void Volume


Dry Packing Factor
16*16 0.3 214000 396 362 94.9 423
25*25 0.4 51940 393 219 95.0 255
38*38 0.6 15180 318 146 95.9 165
50*50 0.8 6500 314 109 96.0 124
76*76 1.2 1830 308 71 96.1 80



3. Pall ring packing application


It is applicable to various separation, absorption and desorption devices, atmospheric and vacuum units, synthetic ammonia decarbonization and desulfurization systems, ethyl benzene separation, isooctane / methyl benzene separation, etc.


What role does Hualai pall ring packing play in waste gas treatment? When the pall ring is filled in the purification tower, what is the effect of demisting? The packing free volume of pall ring is large, and the packing layer can hold a large amount of liquid for a long time, so as to increase the contact time of gas-liquid phase and improve the mass transfer efficiency of packing. Large free volume, large flow, high quality and high efficiency. It is widely used in chemical packing tower, dust removal, sewage treatment, air purification, waste gas treatment tower and other environmental protection industries. Pall rings are filled on the supporting layer and stacked freely. In addition to effectively reducing the moisture content in waste gas, it is easy to maintain, reduces the corrosion rate of subsequent pipelines, and improves the surrounding working environment.
