Stainless Steel SS316L Wire Mesh Demister Foam Remover Materials

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-135
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Mesh Pad Demister Material: Stainless Steel SS316L
Thickness: 100mm, 150mm, Or As Per Order Shape: Donut, Circle
Sections: 6/8, Or As Per Order Application: Scrubber
Grids: 25*3mm Flat Bar Shape & Size: Φ1700-Φ630 Φ2200-Φ820
Factory: Yuanqiao Application: Filter
High Light:

Stainless Steel SS316L Wire Mesh Demister

,

Demister Foam Remover Materials

,

SS316L Wire Mesh Demister Foam Remover


Product Description

Oil Water SS316L Wire Mesh Demister Foam Remover Materials Stainless Steel



The wire mesh demister


Wire mesh mist eliminator also known as wire mesh demister, is a kind of vapor liquid separating device.It is made up of many corrugated gas liquid filter net,a grid and a fixed distance rod .It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.It can ensure the mass transfer efficiency,reduce the loss of valuable materials after operation of compressor, commonly setted in the top of device.It is widely used in gas-liquid separation in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.

installed above the surface of the liquid with some distance. From one hand it allows some space for the natural disengagement of the coarsest natural particles. From the other hand, it ensures that the gas/ vapour flow is uniform over the whole area of the mist eliminator

The gas / vapor containing droplets passes into mesh pad demister at a predetermined velocity. It easily finds open path through the mesh but the droplets and mist impinge on the filaments of mesh where they coalesce and eventually grow to such a size to overcome surface tension of liquid and force of gravity. Then the liquid droplets so formed fall down. And the mist free gas / vapour passes through the mesh demister pad.



Material:

Stainless steel:304,304L,316,316L etc.

Plastic:PP,HDPE,PVDF etc.

Also produce special material according to customer's request.

Structure:

wire mesh demister mainly by wire mesh, wire mesh grille composed of blocks and fixed mesh blocks constitute supporting device, screen for a variety of materials structure and gas demister installation form
Liquid filters, liquid filters are made of metal wire or non-metallic filaments.

Oil Water SS316L Wire Mesh Demister Foam Remover Materials Stainless Steel 1


Wire Mesh Demister Specifications in this case



Item Value Unit
Material SS316L /
Shape & Size Φ1700-Φ630
Φ2200-Φ820
mm
Mesh Thickness 150 mm
Demsiter Height 200 mm
Wire Diameter 0.23 mm
Mesh Density 112 kg/m3
Void Fraction 0.986 /
Specific Area 244 m2/m3
Grids 25*3 flat bar mm



Metal Wire Mesh Pad Demister Type and Applications



Wire Dia.

Mm

Mesh Density

Kg/m3

Surface Area

M2/m3

Normal Micron Rating Application
0.15 195 650 3 Very high efficiency in clean service
0.15 145 480 4 Fine droplet removal in clean service
0.15 112 375 5 General purpose in clean service
0.28 195 355 5 Optimum efficiency & pressure drop
0.28 170 310 6 General purpose not totally clean
0.28 145 265 8 Heavy Duty e.g. Oil & Gas Separators
0.28 110 200 10 Light fouling
0.28 80 145 12 Moderate fouling

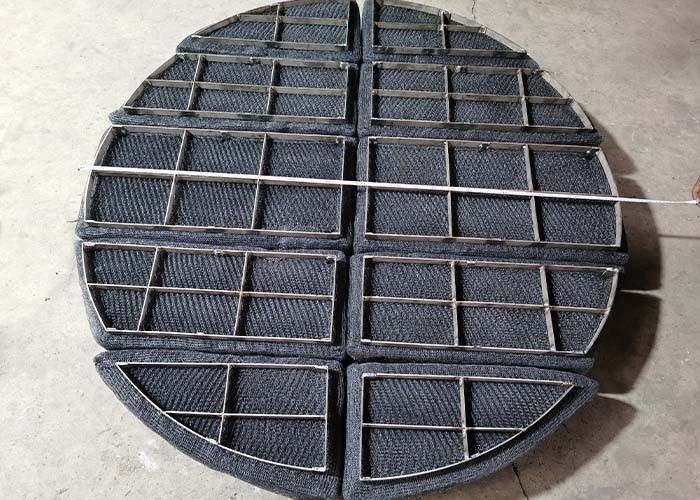

Stainless Steel SS316L Wire Mesh Demister Foam Remover Materials 1
