Scrubber Wire Mesh Demister Screen SS304

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-143
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes or pallet
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Mesh Pad Demister Material: SS304
Thickness: 100mm, 150mm, Or As Per Order Shape: Donut, Circle
Sections: 6/8, Or As Per Order Application: Scrubber
Grids: 25*3mm Flat Bar Shape & Size: Φ1700-Φ630 Φ2200-Φ820
Factory Name: Yuanqiao Application: Filter
High Light:

Scrubber Wire Mesh Demister Screen

,

SS304 Scrubber Wire Mesh Demister

,

Wire Mesh Demister Screen SS304


Product Description

Fast Delivery Wire Mesh Demister , Demister Pad Use Quick Response



Demister Pad Work Theory:



1.A vapor stream carrying entrained liquid droplets passes through a demister pad. The vapor moves freely through the knitted mesh.

2.The inertia of the droplets causes them to contact the wire surfaces and coalesce.

3.The large, coalesced droplets formed in the mesh ultimately drain and drop to the vessel bottom.



​​

Demister Pad Diameter 900 technical data:



Item Value Unit
Material 321SS /
Shape & Size Φ900 mm
Mesh Thickness 100 mm
Demsiter Height 150 mm
Wire Diameter 0.23 mm
Mesh Density 144 kg/m3
Void Fraction 0.982 /
Specific Area 321 m2/m3
Grids 25*3 flat bar mm



Demister Pad Material:



1. Metallic Mesh Pads: Materials for metallic Mist Eliminators are as per customer need. Type 304 or Type 316 mesh pads can be in accordance with ASTM A-478. Monel mesh pads can be in accordance with ASTM B-164.

2. Non-metallic Mist Eliminators: Non-metallic Mist Eliminators shall be PTFE or polypropylene as specified in by customer.



Demister Pad Manufacturing:



A. Mist Eliminators shall be fabricated in one piece or in the minimum number of sections required for insertion through the vessel manway.
B. Mesh pads shall fit tightly into the pad containment system.
C. Mesh pad layers shall not be more than 9 inches (230 mm) thick. Where more than one layer is required, joints shall be staggered.

D. One-piece circular mesh pads may be spiral in form

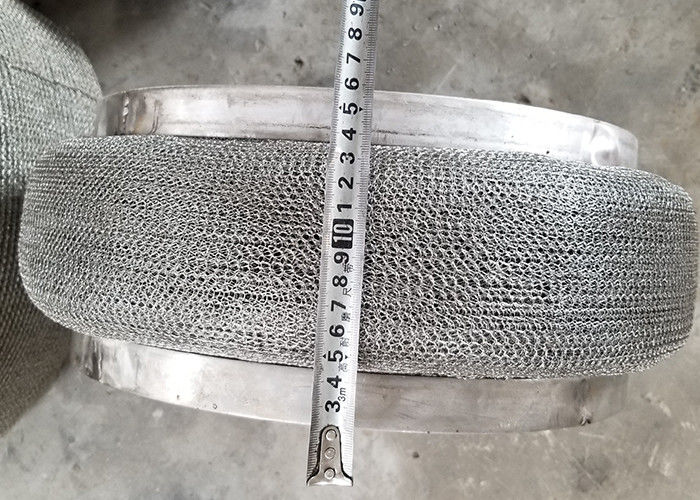

Scrubber Wire Mesh Demister Screen SS304 0



Scrubber Wire Mesh Demister Screen SS304 1
