Round SS316 Wire Mesh Demister In Vessel Boiler System

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-115
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: pallet or Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Wire Mesh Demister Material: SS316L
Shape: Donut, Circle Thickness: 100mm, 150mm,200nn, Or As Your Required
Sections: 6/8, Or According To Your Required Application: Gas Liquid Mesh Filter
Grids: 25*3mm Flat Bar Shape & Size: Φ1700-Φ630 Φ2200-Φ820
Type: Filter Elements Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

Round SS316 Wire Mesh Demister

,

Demister In Vessel Boiler System

,

Round SS316 Demister In Vessel


Product Description

Wire mesh Demister Pad

Rectangle Ss316 Wire Mesh Demister For Vessel Boiler System



1. Demister mesh density and applications



Mesh density

(stainless steel)

Application

50 kg/m3

Heavy fouling, e.g. evaporators

80 kg/m3

Moderate fouling, e.g. vessel boilers

110 kg/m3

Light fouling

145 kg/m3

Heavy duty, e.g. oil and gas separators

170 kg/m3

General purpose, not totally clean

195 kg/m3

Optimum efficiency & pressure drop

240 kg/m3

High density with high separation efficiency

112 kg/m3

General purpose, clean service

145 kg/m3

Find droplet removal in clean service


2.Raw material of construction and application:



Materials

Main Application Area

SS304

Water solutions, Nitric acid reduced crude petroleum fraction etc.

SS316L

Fatty acid reduced crude containing naphthenic acids and corrosive chemicals

Synthetic fiber

For corrosive service at moderate temperature

PP(Polypropylene)

For corrosive service at temperature up to 70℃

PTFE

For corrosive service at temperature of (-190℃, 250℃)

Monel

Caustic soda, dilute acid

Nickel

Caustic Soda, food products

Copper

Freon, alcohol

Aluminium

Nitric Acid



3. How does a demister pad work?



(1)A vapor stream carrying entrained liquid droplets passes through a demister pad. The vapor moves freely through the knitted mesh.

(2)The inertia of the droplets causes them to contact the wire surfaces and coalesce.

(3)The large, coalesced droplets formed in the mesh ultimately drain and drop to the vessel bottom.



4.Advantages of PP Demister Pad

1. Various types and diameters.

2. Simple to install and uninstall.

3. Acid and alkali resistance.

4. Corrosion resistance

5. High filtering

6. Light weight



5.Why choose Yuanqiao demister company ?



15 year's exporting experience,know the market required clearly,could offer you professional suggestion ,the most important ,give you great product with competitive price



Whatever you import and sell ,or you use it by yourself ,i believe,we will be good parter,looking forward our first talking

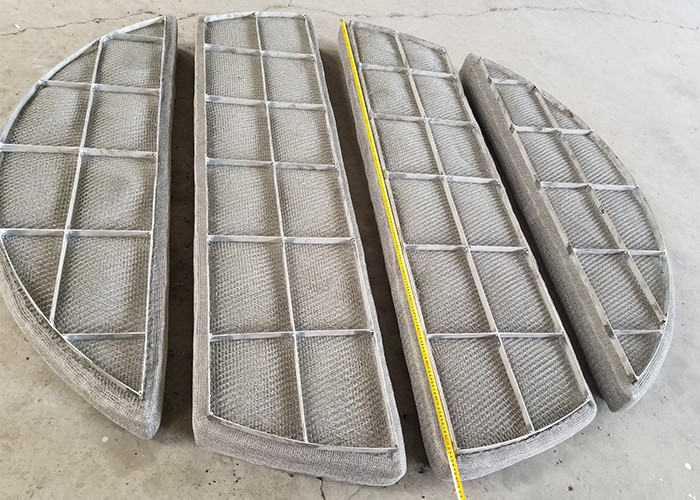

Round SS316 Wire Mesh Demister In Vessel Boiler System 0
