Detail Information

Product Name:	Demister Pad	Material:	Stainless Steel (AISI201,202,301,302,3041,304L,321/316L)
Shape:	Donut, Circle	Thickness:	100mm, 150mm, Or As Per Order
Sections:	6/8, Or As Per Order	Application:	Manufacturing Plant, Machinery Repair Shops, Chemical Indus
Grids:	25*3mm Flat Bar	Shape & Size:	Φ1700-Φ630 Φ2200-Φ820
Type:	Filter Elements	Core Components:	Engine, Bearing, Gearbox, Pressure Vessel
High Light:	Distillation Tower Mist Eliminator Pads , Mist Eliminator Pads 500mm , SS431 Scrubber Mist Eliminator

Product Description

Distillation Tower Ss431 Scrubber Mist Eliminator 500mm

Description

Material:	SS304	Size:	500mm
Sections:	1	Product Name:	Demister Pad
Application:	Distillation Tower	Mesh Density:	144 Kg/m3
Shape:	Round	Packing:	Wooden Carton
High Light:	ss431 scrubber mist eliminator , scrubber mist eliminator 500mm , distillation tower scrubber mist eliminator

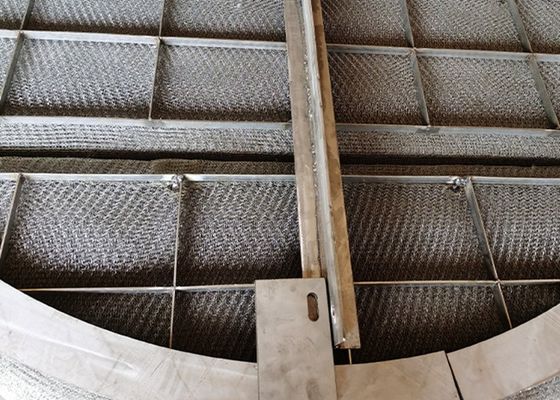

SS304 York 431 Round Type Stainless Steel Wire Mesh Demister Pad

Demister Pad collect liquid particles accompanying airborne droplets in the vapor phase after boiling, vacuum evaporation or bubbling process. Droplets grow in size their weights become heavy so they are fall free. It is making clean products at the top.

Specifications

1. Material SS304

2. Shape round Type

3. Size Φ500 mm

4. Mesh Thickness 100 mm

5. Demister Height 150 mm

6. Wire Diameter 0.28 mm

7. Mesh Density 144 kg/m3

8. Void Fraction 0.982

9. Specific Area 260 m2/m3

10. Grids Flat bar 25*3 mm

Applications of wire mesh demister pad

Demister pad increases the purification ratio, enabling a deep cut in residue oil to improve the quality of gas oil.

Improved gas oil contains less carbon, asphalt and corrosive metals, increases decomposition capacity by the residue load in the re-generator, and maintains a higher contact reaction to produce a higher gasoline yield ratio.

Place of Origin:	Anping, China
Brand Name:	Yuanqiao
Certification:	ISO9001
Model Number:	YQ-207

Minimum Order Quantity:	1pc
Price:	Negociation
Packaging Details:	Wooden boxes
Delivery Time:	5-10 days
Payment Terms:	L/C, T/T
Supply Ability:	1000 pcs per month

SS431 Scrubber Mist Eliminator Pads 500mm

Distillation Tower Mist Eliminator Pads

Mist Eliminator Pads 500mm

SS431 Scrubber Mist Eliminator

Distillation Tower Ss431 Scrubber Mist Eliminator 500mm

Distillation Tower Ss431 Scrubber Mist Eliminator 500mm

ss431 scrubber mist eliminator

scrubber mist eliminator 500mm

distillation tower scrubber mist eliminator

Demister Pad collect liquid particles accompanying airborne droplets in the vapor phase after boiling, vacuum evaporation or bubbling process. Droplets grow in size their weights become heavy so they are fall free. It is making clean products at the top.

Specifications

2. Shape round Type

3. Size Φ500 mm

4. Mesh Thickness 100 mm

5. Demister Height 150 mm

6. Wire Diameter 0.28 mm

7. Mesh Density 144 kg/m3

8. Void Fraction 0.982

9. Specific Area 260 m2/m3

10. Grids Flat bar 25*3 mm

Applications of wire mesh demister pad

Demister pad increases the purification ratio, enabling a deep cut in residue oil to improve the quality of gas oil.

Improved gas oil contains less carbon, asphalt and corrosive metals, increases decomposition capacity by the residue load in the re-generator, and maintains a higher contact reaction to produce a higher gasoline yield ratio.
