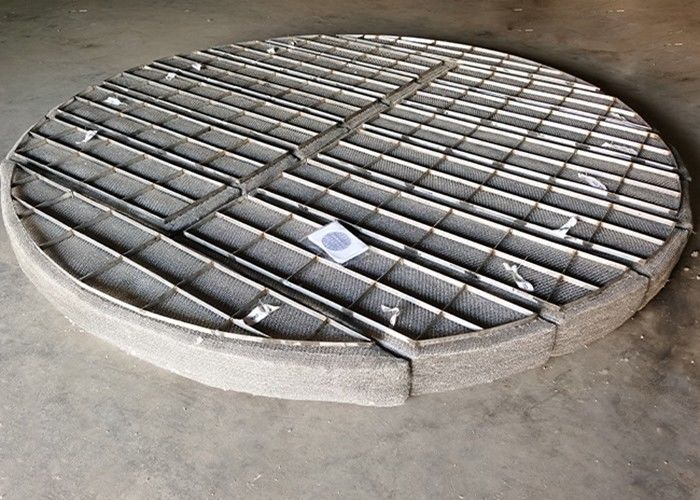

1250x600mm Demister Pad SS304 Scrubber Mist Eliminator Drain Hole At Bottom

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-211
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Demister Pad Material: Stainless Steel (AISI201,202,301,302,3041,304L,321/316L)
Shape: Donut, Circle Thickness: 100mm, 150mm, Or As Per Order
Sections: 6/8, Or As Per Order Application: Manufacturing Plant, Machinery Repair Shops, Chemical Indus
Grids: 25*3mm Flat Bar Shape & Size: Φ1700-Φ630 Φ2200-Φ820
Type: Filter Elements Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

1250x600mm Demister Pad

,

SS304 Scrubber Mist Eliminator

,

1250x600mm Scrubber Mist Eliminator


Product Description

1250x600mm Demister Mesh Ss304 Drain Hole At Bottom




1250x600mm Demister Mesh Ss304 Drain Hole At Bottom

Description
Size: 1250mm*600mm Product Name: Air Filter Demister Pad
Material: SS304 Frame: Metal Plate
Application: Ventilation System Sections: No Sections; Whole
Height: 80mm Packing: Wooden Case
High Light:

1250x600mm demister mesh

,

bottom drain hole demister mesh

,

demister mesh ss304





SS304 1250x600mm Drain Hole At The Bottom Of Wire Mesh Pad Demisters

Demister Pad collect liquid particles accompanying airborne droplets in the vapor phase after boiling, vacuum evaporation or bubbling process. Droplets grow in size their weights become heavy so they are fall free. It is making clean products at the top.





Wire Mesh Demister Pad Specifications



1. Material SS304

2. Shape Rectangle

3. Size 1250*600mm

4. Mesh Thickness 80 mm

5. Demsiter Height 80 mm

6. Wire Diameter 0.23 mm

7. Mesh Density 130 kg/m3

8. Void Fraction 0.984

9. Specific Area 285 m2/m3

10. Grids Screen mesh + Bending plate



TYPICAL APPLICATIONS



Absorber,

Scrubbers,

Evaporator,

Steam drums,

Knockout drums,

Separators vessels,

Refining lube towers,

Refining vacuum tower,

and any process vessels handling liquid and vapor where complete separation of entrained liquid droplets is desired from gas/vapor phase.
