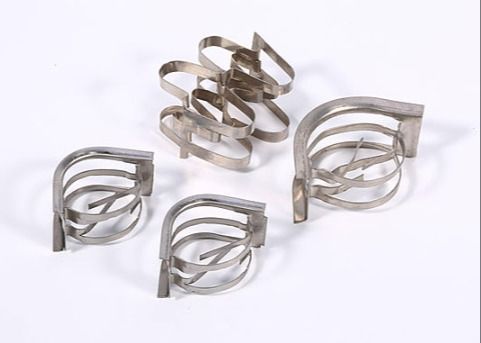

1/2" 25mm SS316 Saddle Ring Metal Random Packing Column Internals

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-209
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Metal Random Packing Material: Stainless Steel 304, 316L, Etc.
Model Number: Metal Intalox Saddles Shape: Raschig Ring
Size: 16# 25# 40# 50# 70# Application: Absorption , Scrubbing , Stripping
Type: Catalyst Beds Keyword: Metal Rashing Ring
High Light:

1/2" 25mm Saddle Ring Packing

,

SS316 random packing column internals

,

SS316 Saddle Ring Metal Random Packing


Product Description

1/2" 25mm Ss316 Saddle Ring Metal Random Packing

Description
Material: SS304 SS316 Application: Absorption, Scrubbing, Etc.
Size: 15#, 25#, 40#, 50#, Etc OEM: Yes
Feature: High Capacity, Low Pressure Drop Product Group: Metal Random Packing
Packing: Jumbo Bag Service: On Line Service
High Light:

1/2" metal random packing

,

25mm metal random packing

,

saddle ring packing 25mm





1/2" 25mm SS316 Saddle Ring for Philippine Market Metal Random Packing

1.Metal Saddle Ring Introduction



We can see that the upper arc is an elliptic curve and the lower arc is a semicircle curve. Though it looks complex in the self-structure and shape, it is made of a single square piece of metal sheet. So it will be easy to calculate the specific area of this kind of packing, if we know the bulk packing number of a cubic meter.

With experiences and technologies of random packing in Hualai, we are expecting to be helpful in your project!



2. Stainless Steel 304 Saddle Ring Options:



25mm Stainless Steel 304 Saddle Ring:

Nominal size

25 mm saddle rings

Thickness

0,3 mm

Weight

228 kg/m³

Surface area

235 m²/m³

Void fraction

97 %

Material

stainless steel

Available material

carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request



In Yuanqiao, we understand the importance of timeliness and quality for all plant operations. Hualai factory serves local, domestic and international partners all with the same strategic purpose - reliable quality, partnership attitude and attention to details.



3. SS 316L Random Packing Saddle I Ring Advantage:



The metal saddle ring gives one of the best choices for high performance random packing, with low pressure drop and high efficiency. This specially designed saddle-shape random packing provides a lower pressure drop at the same vapor and liquid loads. It can be effectively used in both high pressure and vacuum towers. Others of its advantages include large effective inter-facial area, high mechanical strength and low cost. Metal saddle rings are therefore used in many distillation and absorption columns all around the world. It is available in various sizes, which give different combinations of efficiency and pressure drop.



4. Metal Saddle Ring Packing Applications:



Metal saddle ring packed bed has a large void fraction, and most of the packing is circular liquid channel, which reduces the resistance of gas passing through the bed, also reduces the radial diffusion coefficient of liquid flowing downward.

Metal saddle ring is widely applied in drying tower, absorption tower, cooling tower, washing tower, wet scrubber tower, Regeneration tower, etc. Covering the industries like Chemical, Metallurgical, Gas and Environmental Protection.
