Diamerter 500mm Distillation Tower Internals Random Packing Support Plate Ss304





Diamerter 500mm Distillation Tower Internals Random Packing Support Plate Ss304

Description
Feature: Super High Void Fraction Application: Random Packing Support Plate
Advantage: Low Pressure Drop Material: 410SS, As Per Order
OEM: Yes Sections: As Per Manway
High Light:

diamerter 500mm distillation tower internals

,

ss304 distillation tower internals

,

sus grade packing support

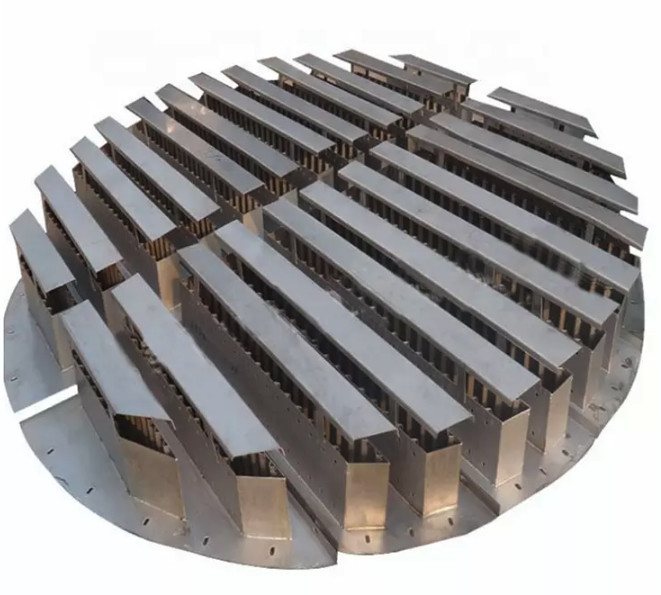

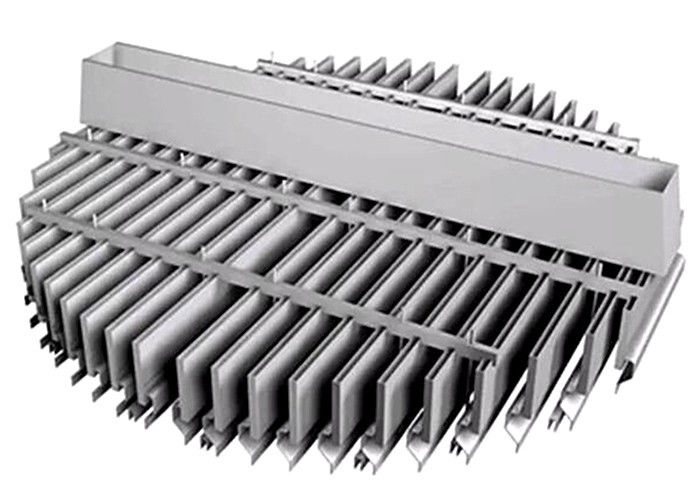

SS304 Diamerter 500mm Random Packing Support Plate for Distillation Tower



1. Random Packing Support Plate for Distillation Tower



It is composed of several beam support plates, which is a detachable structure.

The opening size of the support plate is generally 12mm * 45mm long round hole. When the size (diameter or height) of the bulk packing is smaller than the opening size of the support plate, lay one or two layers of wire mesh on the upper surface of the support plate, and then stack the packing.



2. The random packing support plate arrangements according to tower inner diameter (part table):



Item

Inner Dia.

mm

Support Plate Dia.

mm

Support Plate Sections

Support Ring Width

mm

Support Ring Thickness

mm

1

300

290

2

30

10

2

400

380

2

30

10

3

500

480

2

30

10

4

600

580

3

30

10

5

700

680

3

30

10

6

800

780

3

40

10

7

900

880

3

40

10

8

1000

980

3

40

10

9

1100

1080

4

40

10

10

1200

1160

4

50

10

11

1300

1260

4

50

14

12

1400

1360

4

50

14

13

1500

1460

5

50

14

14

1600

1560

5

50

14

15

1700

1660

5

50

14

16

1800

1760

6

50

14

17

1900

1860

6

50

14

18

2000

1960

6

50

14

19

2100

2060

7

50

14

20

2200

2160

7

50

14

To be continued.

When the tower inner diameter is over 2600mm, main bearing beam under the beam supporting plate is required.



3. Features of beam type random packing support plate



1. Good rigidity and large capacity.
2. The pressure drop of gas through the support plate is small.
3. The gas and liquid flow channels are separated, and the gas phase is sprayed to the packing layer through the side opening holes, while the liquid phase flows to the lower packing layer through the opening at the bottom of the support plate, so the gas and liquid are evenly distributed
4. The free cross-sectional area of gas-phase flow is large. Generally, the free cross-sectional area can reach more than 90% of the cross-sectional area of the tower, so a higher gas-liquid load is allowed.



4.Applications



1. Distillation towers,
2. Scrubbing towers,
3. Steam drum,
4. Evaporators,
5. Knockout drum,
6. Sulfuric acid plants,
7. Petrochemical plants,
8. Flue gas desulfurization,
9. Refineries,
10. LNG plants,
