Double Wire Knitting PP Mesh Pad Demister 100mm Thickness Cellular Structure

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-98
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Stainless Steel Mist Eliminator Material: Stainless Steel
Length: 18 Inch ,20 Inch,24 Inch,32 Inch Width: 18 Inch ,20 Inch,24 Inch,32 Inch
Hole Size: Irregular Wire Diameter: 0.23mm 0.25mm 0.27mm
Hole Shape: Irregular Demsiter Filter Pad Size: 18''*18'' ;24''*24'' ;12''*24"
Application: Mist And Grease Filter Type: Knitted
High Light:

Double Wire Knitting PP Mesh Pad

,

Cellular Structure PP Demister Pad

,

PP Mesh Pad 100mm Thickness


Product Description

Double Wire Knitting PP Mesh Pad 100mm Thickness Cellular Structure





PP Mesh Pad Double Wire Knitting Mesh 100mm Thickness Cellular Structure



PP Mesh pad mist eliminator, which is used in removing droplets entrained in flow gas, is constructed from knitted wire mesh with a cellular structure. The knit mesh are made into a mesh pad with determinate thickness and size, through which the two phases liquid-gas or liquid-vapor are disengaged.

From the statistic data obtained both in laboratory tests and industrial applications, it shows that the proper designed mesh pad demister allows a separation of liquids carried by gas with efficiency reaching 99.9%.



Demister Inquiry Table if Calculation Suggestions and Service are needed.



Please State your demister / mist eliminator application

Operating data
Gas Max. gas volume flow (operating conditions) M3/h
Gas density (operating condistions) Kg/m3
Operating pressure Bar (a)
Operating temperature
Liquid Liquid content Kg/h
Liquid density Kg/m3
Dynamic viscosity of the liquid mPas
Geometrical data
Flow direction Horizontal ¨
Vertical ¨
Installed in Column ¨
Pipe ¨
Column diameter or dimensions mm
Opening for installation Manhole ¨ DN
Vessel flange ¨ Size
Requirements
type of mist eliminator Wire mesh demister
Material
Efficiency of separation %
Max. pressure drop
Miscellaneous

Please pay attention to the Unit when refering to this sheet.



Where are DEMISTER units used?



Knockout drums and separators – save on capital costs by decreasing vessel size-recover costly fatty acids from stream-reduce compressor maintenance by preventing scale build-up

Absorbers – reduce overhead losses of glycols in dehydrators to no more than 0.1 gal/MMSCF natural gas-cut losses of absorption oil and amines in CO2 systems

Scrubbers – reduce chemical discharges from Kraft mill smelt dissolver tank to less than 0.11 kg/dry ton (0.25 lb/dry ton) of pulp-improve scrubber efficiency by removing particulates carried in entrained liquids

Distillation columns – improve product purities and increase throughput capacities for petrochemicals, organic intermediates, fine chemicals

Evaporators – prevent carryover loss of valuable products, keep condensate TDS <10 ppm for highest quality boiler feed water-clean up vacuum ejector stream discharge-lower maintenance in vapor re-compression systems

High pressure steam systems – provide dry steam- cut TDS to <10 ppb in condensate-eliminate build-up on turbine blades

Refinery towers – increase throughput capacity-take deeper cuts for greater product yields – prolong catalyst life in downstream cracking and reforming units by reducing carbon and metals in side

draws-use lower grade crudes.



PP mist eliminator Advantage:



Low cost

Practical solution

Low pressure drop

Simplified maintenance

Problem solving results

Tailored to meet client specifications

Guaranteed high performance efficiency

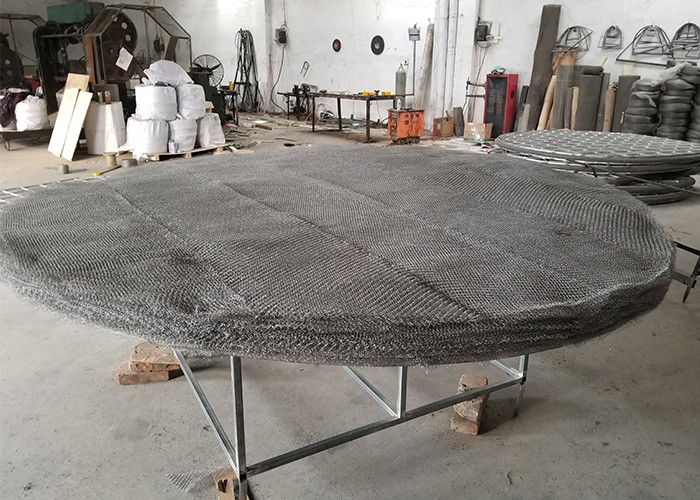

Double Wire Knitting PP Mesh Pad Demister 100mm Thickness Cellular Structure 0
