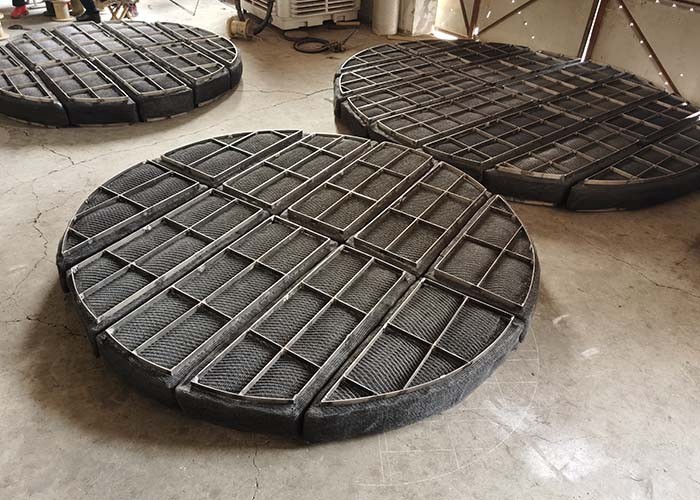

1000mm*1000mm Air Inlet Filter Mesh Pad Demister With Screen Grids And Plate Edge

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-111
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Demister Mist Eliminator Material: Metal And Plastic
Shape: Donut, Circle Thickness: 100mm, 150mm, Or As Per Order
Sections: 6/8, Or As Per Order Application: Filtering & Separation
Grids: 25*3mm Flat Bar Shape & Size: Φ1700-Φ630 Φ2200-Φ820
Type: Filter Elements Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

Air Inlet Filter Mesh Pad Demister

,

1000mm*1000mm demister filter

,

1000mm*1000mm Mesh Pad Demister


Product Description

1000mm * 1000mm Air Inlet Filter Mesh Pad With Screen Grids And Plate Edge



1000mm * 1000mm Air Inlet Filter Mesh Pad With Screen Grids And Plate Edge

Description
Product Name: Air Filter Mesh Pad Size: 1000mm*1000mm, As Per Order
Sections: No Sections; Whole Application: Ventilation System
Material: SS304 Frame: Metal Plate
High Light:

mesh pad mist eliminator

,

wire mesh pad


1000mm * 1000mm Air Inlet Filter Mesh Pad With Screen Grids And Plate Edge



What benefits Hualai demister mist eliminator can provide?



Reduce loss of valuable chemicals: demister pads markedly cut glycol, amine, or solvent consumption in absorption and regeneration towers.

Increase throughput capacity: demister pads allow a significant increase in throughput anywhere gases and liquids come into contact in process equipment.

Improve product purity: demister pads prevent contamination of side draws and overheads in refinery atmospheric and vacuum towers and other distillation columns.

Minimize contamination: demister pads can prevent the poisoning of expensive downstream catalysts or provide boiler feed water quality condensate from evaporator overheads.

Provide equipment protection: demister pads protect turbine, blower, and compressor blades, which can eliminate serious maintenance problems.

Reduce air pollution: demister pads help diminish droplet emissions to environmentally acceptable levels.



Demister mist eliminator Specifications in this case



Item Value Unit
Material SS304 /
Shape & Size 1000*1000 mm
Mesh Thickness 100 mm
Demister Height 100 mm
Wire Diameter 0.23 mm
Mesh Density 144 kg/m3
Void Fraction 0.982 /
Specific Area 316 m2/m3
Grids crimped mesh + curved ss plate mm



Material of construction and its application:



Materials Main Application Area
SS304 Water solutions, Nitric acid reduced crude petroleum fraction etc.
SS316L Fatty acid reduced crude containing naphthenic acids and corrosive chemicals
Synthetic fiber For corrosive service at moderate temperature
PP(Polypropylene) For corrosive service at temperature up to 70℃
PTFE For corrosive service at temperature of (-190℃, 250℃)
Monel Caustic soda, dilute acid
Nickel Caustic Soda, food products
Copper Freon, alcohol
Aluminium Nitric Acid



Yuanqiao mainly produce wire mesh demister,Knitted wire mesh ,cooper wire mesh ,we have been exporting for 15 years.if any question ,.just let me know directly ,i will reply you asap,
