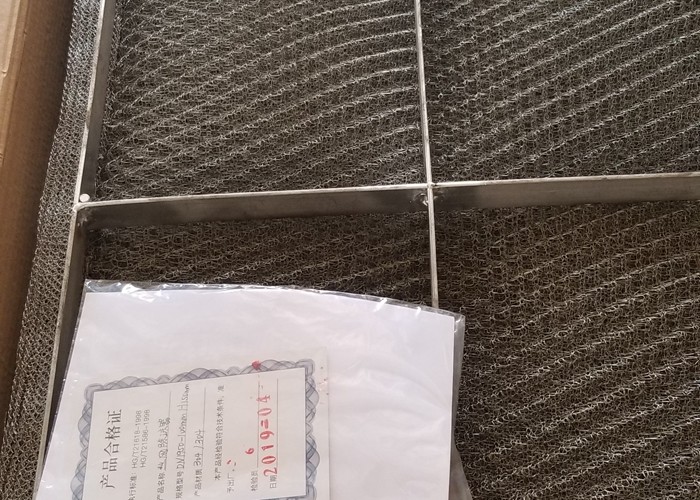

Wire Mesh Demister Mist Eliminator 100mm 150mm Thickness

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-113
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Demister Mist Eliminator Material: Metal And Plastic

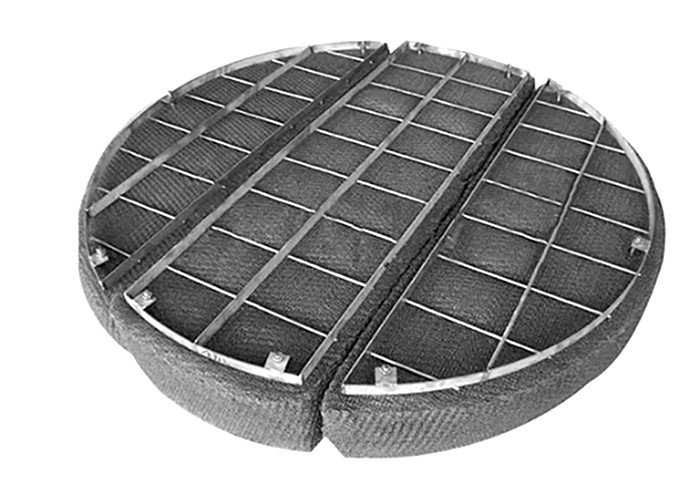

Shape: Donut, Circle Thickness: 100mm, 150mm, Or As Per Order
Sections: 6/8, Or As Per Order Application: Filtering & Separation
Grids: 25*3mm Flat Bar Shape & Size: Φ1700-Φ630 Φ2200-Φ820
Type: Filter Elements Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

wire mesh mist eliminator 150mm Thickness

,

Demister Mist Eliminator 100mm 150mm

,

Wire Mesh Demister Mist Eliminator


Product Description

SS 316L Co Knitting With Glass Fiber Mist Eliminator Square Shape



SS 316L Co Knitting With Glass Fiber Mist Eliminator Square Shape

Description
OEM: Yes Usage: Fine Mist Knocking Out
Shape & Size: Square Or As Per Order Filter Rating: 99.9%
Pressure Drop: A Little Higher Than Normal Demister Other Name: Co-knit Mesh Demister Mist Eliminator
High Light:

wire mesh pad

,

filter mesh pad


SS 316L Co Knitting With Glass Fiber Mist Eliminator Square Shape





MATERIAL OF Constructing demister mist eliminator:



co-knit of 316L + glass fiber



Item Value Unit
Material SS316L+glass fiber /
Shape & Size 600*600 mm
Mesh Thickness 150 mm
Demsiter Height 150 mm
Wire Diameter 0.23 + ? mm
Mesh Density 160 kg/m3
Void Fraction 0.975? /
Specific Area 1500? m2/m3
Grids Φ10 round rods mm



Other materials Mesh and grids may be made from i.e. SS304, 304L, 316, 316L, 321, 310S, 201, Duplex 2205, 316Ti, 904L, Monel, Nickel, Alloy 20, Copper, P.T.F.E., H.D.P.E., P.P., co-knit of 316L + PTFE, alloy 20 + PTFE, 304+PTFE, 904L + PTFE, 304+glass fiber, 316L + glass fiber, 904L + glass fiber, 316L+PP etc. and other metals, alloys or plastic which can be drawn or extruded.



Applications of SS316L + glass fiber co-knit mesh demister mist eliminator:



Low pressure rectifying column:

The co-knit mesh mist eliminator increases the purification ratio, that enables a deep cut in residue oil to improve the quality of gas oil. The improved gas oil contains less carbon, asphalt and corrosive metals, increases decomposition capacity by the residue load in the regenerator, and maintains a higher contact reaction to produce a higher gasoline yield ratio.

Lubricant refinery tower:

The mesh demister increases production volume and yield ratio and improves production quality. As a result, the refining of solvent and white clay is practically rationalized.

Distilling equipment:

Improved performance can be obtained in equipment for processing asphalt, organic intermediate substances, fine chemicals, vegetable oil, tall oil, fatty acid, glycerin, lubricant, benzene and propane.

Evaporator:

The co-knit mesh mist eliminator prevents carryover of valuable products, can be appropriately used for boiler feed water or processes, and produces high quality condensate.

Steam drum:

Demister produces clean and dry solids of less than 0.5ppm and prevents water from flowing back into the turbine.

Absorption tower:

Effective for completely removing all types of flying and accompanying liquids such as absorption oil, glycol and amine dissolution and discharges clean and dry gas. This also improves process efficiency.



The mesh pad demister mist eliminator is installed above the surface of the liquid with some distance. From one hand it allows some space for the natural disengagement of the coarsest natural particles. From the other hand, it ensures that the gas/ vapour flow is uniform over the whole area of the mist eliminator

The gas / vapor containing droplets passes into mesh pad demister at a predetermined velocity. It easily finds open path through the mesh but the droplets and mist impinge on the filaments of mesh where they coalesce and eventually grow to such a size to overcome surface tension of liquid and force of gravity. Then the liquid droplets so formed fall down. And the mist free gas / vapour passes through the mesh demister pad.
