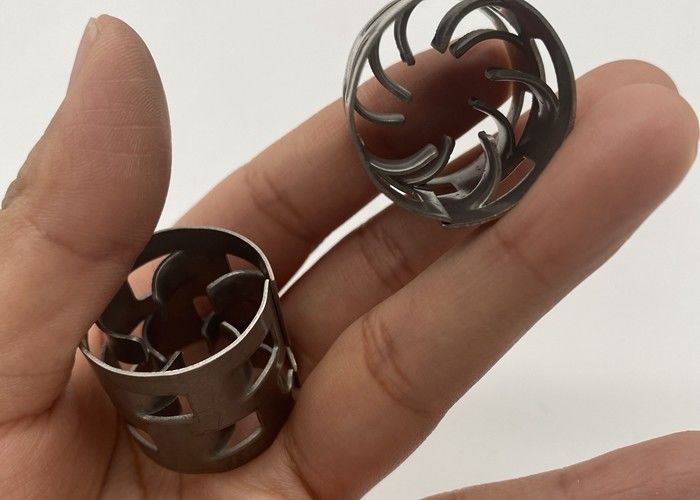

Dn50 Random Tower Packing Raschig Rings SS304 For Chemical Industry

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-117
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Metal Pall Ring Material: Stainless Steel 304, 316L, Etc.
Model Number: Pall Ring Shape: Hollow Columns
Size: 16mm 25mm 38mm 50mm 76mm Application: Tower Packing Media
Type: Ring Keyword: Metal Pall Ring
High Light:

Dn50 raschig rings packing

,

Random Tower Packing Raschig Rings

,

SS304 Dn50 Random Tower Packing


Product Description

Dn50 Tower Random Ss304 Packing Pall Ring For Chemical Industry



Dn50 Tower Random Ss304 Packing Pall Ring For Chemical Industry

Description
Items: Metal Pall Ring Material: SS304, SS316L SS316, Other
Size: 9mm-76mm ETC Wall Thickness: 0.3-1.2mm
Model Number: HL20211012-02 Usage: Absorption ,Chemical Engineering ETC
Material Certificate: Yes Data Sheet: Available
OEM: Yes Equal Inch Type: 1in, 2in, 3in, 3/8in, 5/8in, 1 1/2inch Other
High Light:

ss304 packing pall ring

,

dn50 packing pall ring

,

chemical industry 50 mm pall ring


SS304 DN50 Tower Random Packing For Chemical Industry Metal Pall Ring

Product Introduction



1. The pall ring is an improvement of the raschig ring.
2. The difference for the Pall Ring is the addition of two rows of punched and formed fingers.
3. This adjustment provides a significant performance increase: the capacity and efficiency is improved and the pressure drop is reduced.

Technical Data of metal pall rings:

Nominal size 16 mm pall ring
Thickness 0,3 mm
Weight 340 kg/m³
Surface area 360 m²/m³
Void fraction 95 %
Material stainless steel
Available materials carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request



Nominal size 25 mm pall ring
Thickness 0,5 mm
Weight 393 kg/m³
Surface area 215 m²/m³
Void fraction 95 %
Material stainless steel
Available materials carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request



Nominal size 38 mm pall ring
Thickness 0,5 mm
Weight 285 kg/m³
Surface area 145 m²/m³
Void fraction 96 %
Material stainless steel
Available materials carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request



Nominal size 50 mm pall ring
Thickness 0,5 mm
Weight 207 kg/m³
Surface area 112 m²/m³
Void fraction 97 %
Material stainless steel
Available materials carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request



Nominal size 76 mm pall ring
Thickness 0,7 mm
Weight 109 kg/m³
Surface area 78 m²/m³
Void fraction 98 %
Material stainless steel
Available materials carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request



Material



Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring are available in a wide range of materials such as stainless steel ,carbon steel ,aluminum, bronze,304L,316L,and other alloy etc.



Applications of metal pall rings

1 Degassing
2 Gas washing
3 Steam stripping
4 Air pollution control scrubbers
5 H2S, NH3 & SO2 absorption and stripping



Dn50 Random Tower Packing Raschig Rings SS304 For Chemical Industry 0
