Absorption Tower 50mm 321 Stainless Steel Pall Rings Packing 0.8mm Thickness

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-118
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Metal Pall Ring Material: Stainless Steel 304, 316L, Etc.
Model Number: Pall Ring Shape: Hollow Columns
Size: 16mm 25mm 38mm 50mm 76mm Application: Tower Packing Media
Type: Ring Keyword: Metal Pall Ring
High Light:

50mm 321 Stainless Steel Pall Rings

,

Pall Rings Packing 0.8mm Thickness

,

50mm 321 Pall Rings Packing


Product Description

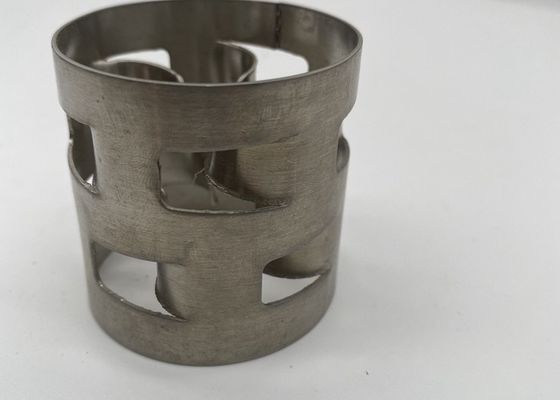

50 Mm 321 Absorption Tower Stainless Steel Pall Rings 0.8mm Thickness



50 Mm 321 Absorption Tower Stainless Steel Pall Rings 0.8mm Thickness

Description
Product Name: Stainless Steel Pall Ring Application: Absorption Tower Packing
Size: 2 In / 50 Mm Wall Thickness: 0.8 Mm
Material: 321 OEM: Yes
Sample: Free Sample Warranty: Lifetime Online Service
Data Sheet: Available Material Certificate: Yes
High Light:

stainless steel pall rings 50mm

,

absorption tower stainless steel pall rings

,

absorption tower 50mm metal pall ring





50 Mm 321 Absorption Tower 0.8 Mm Thickness Stainless Steel Pall Rings

1. Stainless Steel Pall Ring Basic Introduction:

When we talk about metal pall rings, we know it is an active market with many users and suppliers. The users are trying to use it in more and more applications effectively. And the factories are improving the production methods and efficiency. Sometimes an innovation comes out of the mutual communication, which has enriched the scope of metal pall rings we usually talk about. For example, except the normal sizes of metal pall rings, we do know there are some new sizes being produced.



2. Stainless Steel Pall Ring Specification:

diameter×height×thickness
(mm)
specific surface area
(m2/m3)
Porosity
(m3/m3)
Number in 1 m-3 Density of the pile
(kg/m3)
Dry filler factor
F
76×76×1.2 71 0.961 1830 308 80
50×50×0.8 109 0.960 6500 314 124
38×38×0.6 146 0.959 15180 318 165
25×25×0.5 219 0.950 51940 393 255
16×16×0.3 362 0.949 214000 396 423



3. Stainless Steel Pall Ring History:

The metal pall ring random packing was developed by BASF company in 1940s on the basis of raschig ring. It is made of sheet metal by punching and rolling. Two rows of window holes with tongue leaves extending inside are opened on the ring wall. Each row of window has five tongue leaves bending into the ring, pointing to the ring center, almost connecting at the center, and the upper and lower layers of window holes are staggered with each other. Generally, the total area of the opening is about 35% of the whole ring area. As a result of opening windows on the ring wall, the distribution of gas and liquid in the packing bed and the mass transfer performance are greatly improved compared with that in the raschig ring. People have made plenty of study of its performance, so pall ring is still one of the main random packing used at present.



4. Application of Stainless Steel Pall Rings:



1. Liquid extractors;

2. NH3 extraction devices;

3. Ethylene extraction columns;

4. Carbon monoxide converters;

5. Petrochemical and medical equipment.

6. Dimethyl terephthalate running column;

7. Mass-transfer columns separation devices;

8. Carbon dioxide and hydrogen sulphide absorption and flash tower.



Absorption Tower 50mm 321 Stainless Steel Pall Rings Packing 0.8mm Thickness 0
