Metal Ceramic PP 5/8 Inch Stainless Steel Pall Rings Cooling Tower Packing

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-203
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Metal Random Packing Material: Stainless Steel 304, 316L, Etc.
Model Number: Metal Intalox Saddles Shape: Raschig Ring
Size: 16# 25# 40# 50# 70# Application: Absorption , Scrubbing , Stripping
Type: Catalyst Beds Keyword: Metal Rashing Ring
High Light:

5/8 Inch Stainless Steel Pall Rings

,

Metal Pall Rings Cooling Tower Packing

,

Ceramic PP Stainless Steel Pall Rings


Product Description

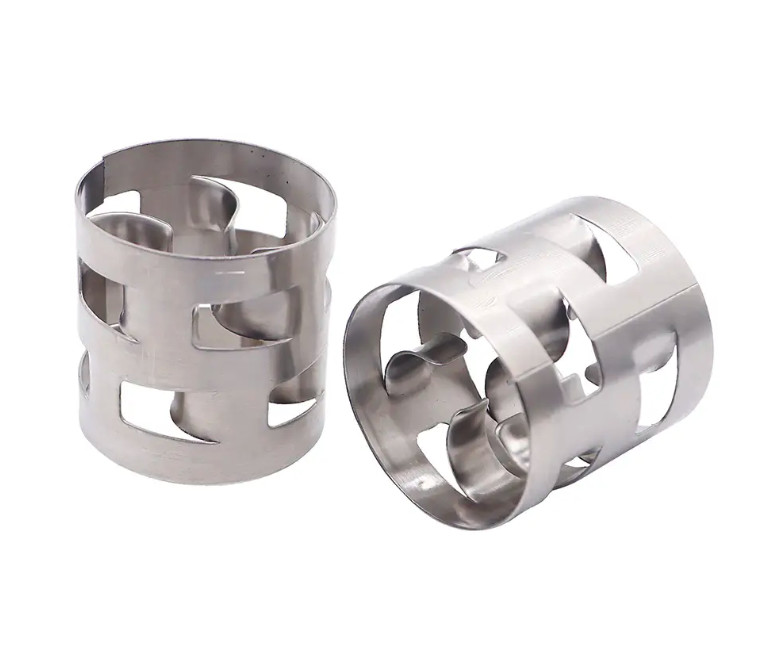

Metal Ceramic Pp 5/8 Inch Stainless Steel Pall Rings Cooling Tower Packing





Metal Ceramic Pp 5/8 Inch Stainless Steel Pall Rings Cooling Tower Packing

Description
Name: Metal Stainless Steel Ceramic PP Tower Packing Cooling Tower Pall Ring Size: 5/8 Inch To 3 Inch And More
Material: All Material Certificate: Available
Data Sheet: Available Wall Thickness: As Per Order
OEM: Yes
High Light:

cooling tower stainless steel pall rings

,

5/8 inch stainless steel pall rings

,

5/8 inch metal pall ring packing





Metal Stainless Steel Ceramic PP Tower Packing Cooling Tower Pall Ring


Product description

"Yuanqiao Packing Mall" Metal Pall Ring exploit the ring feature for mass transfer and the saddle shape for lower pressure drop, has high loading and low pressure drop, Good gas-liquid distribution and high mass transfer efficiency. It is mechanically robust, lesser probability of breakage, suitable for deeper beds.
Metal Pall Ring has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on.
It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable systems.
Material: Carbon Steel. SS304, 304L, 410, 316, 316L, etc.



Pall Ring Application:

It is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.(such as: Device of isolation, absorption, distillation, desorption, common decompression.)


Metal Pall Ring Benefits:

High resistance to fouling; Multiple materials available; High temperature applications; üMechanically robust, lesser probability of breakage; Good liquid/gas distribution and high mass transfer efficiency.


Metal Pall Ring specification data groups:

50mm Pall Rings
Free Space (%) 96 Metal Ceramic Pp 5/8 Inch Stainless Steel Pall Rings Cooling Tower Packing 0
Specific Surface Area (m2/m3) 100
No. Per Unit Volume (m3 ) 6,000
Packing Factor (m-1) 107

Specific Weight (kg/m3) 196 – 354

Stainless Steel

Dimensions (mm) 50 x 50
Thickness (mm) 0.5 – 0.9
Normal Material stainless steel 304, 316L

16mm Pall Rings
Free Space (%) 93 Metal Ceramic Pp 5/8 Inch Stainless Steel Pall Rings Cooling Tower Packing 1
Specific Surface Area (m2/m3) 316
No. Per Unit Volume (m3 ) 210,000
Packing Factor (m-1) 315

Specific Weight (kg/m3) 400 – 535

Stainless Steel

Dimensions (mm) 16 x 16
Thickness (mm) 0.3 – 0.4
Normal Material stainless steel 304, 316L

25mm Pall Rings
Free Space (%) 94 Metal Ceramic Pp 5/8 Inch Stainless Steel Pall Rings Cooling Tower Packing 2
Specific Surface Area (m2/m3) 209
No. Per Unit Volume (m3 ) 49,500
Packing Factor (m-1) 176

Specific Weight (kg/m3) 322 – 644

Stainless Steel

Dimensions (mm) 25 x 25
Thickness (mm) 0.4 – 0.8

38mm Pall Rings
Free Space (%) 95 Metal Ceramic Pp 5/8 Inch Stainless Steel Pall Rings Cooling Tower Packing 3
Specific Surface Area (m2/m3) 122
No. Per Unit Volume (m3 ) 13,450
Packing Factor (m-1) 107

Specific Weight (kg/m3) 200 – 400

Stainless Steel

Dimensions (mm) 38 x 38
Thickness (mm) 0.4 – 0.8
Normal Material stainless steel 304, 316L

Pall ring features:

The opening area is about 35% of the torus area. The gas-liquid distribution and mass transfer performance in the packed bed are better than those in rasch ring due to the opening of the ring wall. Many studies have been done on its properties, so pall ring is still one of the main random packaging in use today.
