Diameter 500mm Knitmesh Demister Pad SS304 Stainless Steel

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-210
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Demister Pad Material: Stainless Steel (AISI201,202,301,302,3041,304L,321/316L)
Shape: Donut, Circle Thickness: 100mm, 150mm, Or As Per Order
Sections: 6/8, Or As Per Order Application: Manufacturing Plant, Machinery Repair Shops, Chemical Indus
Grids: 25*3mm Flat Bar Shape & Size: Φ1700-Φ630 Φ2200-Φ820
Type: Filter Elements Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

Knitmesh Demister Pad SS304

,

Diameter 500mm Knitmesh Demister

,

Diameter 500mm Demister Pad


Product Description

Knitted Diameter 500mm Demister Mist Eliminator Ss304





Knitted Diameter 500mm Demister Mist Eliminator Ss304

Description
Product Name: Demister Pad Thickness: 100mm, 125mm, 150mm
Size Limit: 50mm - 800mm Shape: Round Type
Construction: Winding Mesh To Roll + Grids Material: SS304
Height: 150mm Packing: Wooden Carton
High Light:

diameter 500mm demister mist eliminator

,

demister mist eliminator ss304

,

knitted demister mist eliminator

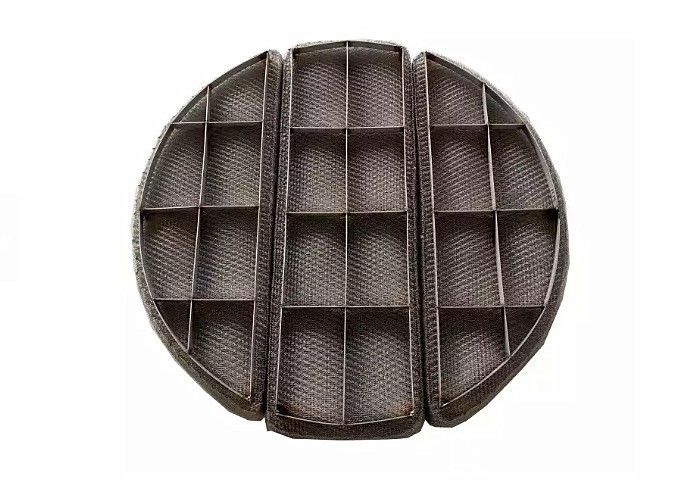

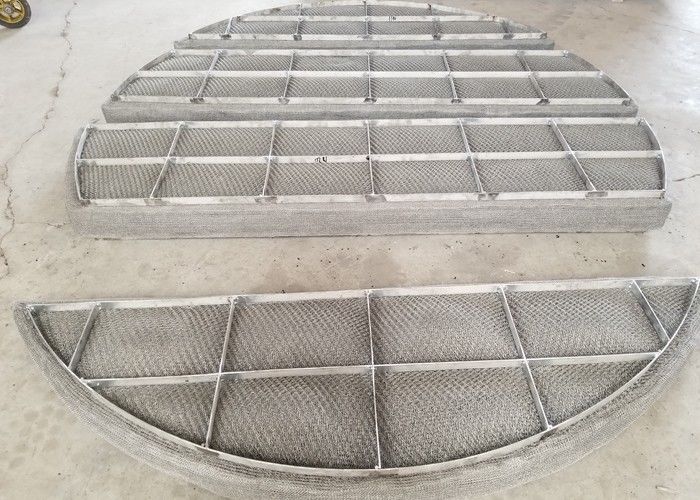

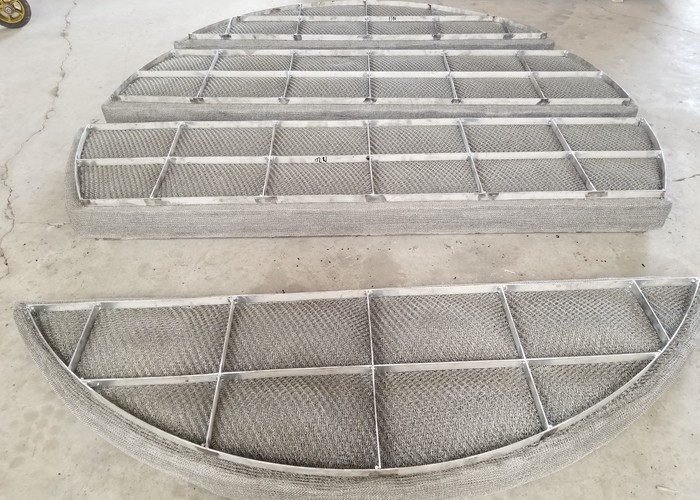

Diameter 500mm SS304 Stainless Steel Wire Mesh Demister Pad

Demister pad also called knitted wire mist eliminator, mist pad, wire mesh demister is used in gas entrained mist separation column to guarantee the filtering efficiency. It is made of stainless steel wire.



Specifications Demister pad in this case:



Item Value Unit
Material SS304A /
Shape & Size Φ500 mm
Mesh Thickness 100 mm
Demsiter Height 150 mm
Wire Diameter 0.23 mm
Mesh Density 144 kg/m3
Void Fraction 0.982 /
Specific Area 316 m2/m3
Grids 25*3 flat bar mm





Applications of Ti mesh demister pad:



Reduce loss of valuable chemicals: demister pads markedly cut glycol, amine, or solvent consumption in absorption and regeneration towers.

Increase throughput capacity: demister pads allow a significant increase in throughput anywhere gases and liquids come into contact in process equipment.

Improve product purity: demister pads prevent contamination of side draws and overheads in refinery atmospheric and vacuum towers and other distillation columns.

Minimize contamination: demister pads can prevent the poisoning of expensive downstream catalysts or provide boiler feed water quality condensate from evaporator overheads.

Provide equipment protection: demister pads protect turbine, blower, and compressor blades, which can eliminate serious maintenance problems.

Reduce air pollution: demister pads help diminish droplet emissions to environmentally acceptable levels.









Diameter 500mm Knitmesh Demister Pad SS304 Stainless Steel 0
