Gas Liquid Separator Mesh Pad Mist Eliminator SS316L 750mm

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-212
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Demister Pad Material: Stainless Steel (AISI201,202,301,302,3041,304L,321/316L)
Shape: Donut, Circle Thickness: 100mm, 150mm, Or As Per Order
Sections: 6/8, Or As Per Order Application: Manufacturing Plant, Machinery Repair Shops, Chemical Indus
Grids: 25*3mm Flat Bar Shape & Size: Φ1700-Φ630 Φ2200-Φ820
Type: Filter Elements Core Components: Engine, Bearing, Gearbox, Pressure Vessel
High Light:

Mesh Pad Mist Eliminator SS316L

,

750mm Mesh Pad Mist Eliminator

,

Gas Liquid Separator mist eliminator pads


Product Description

Gas Liquid Separator Mesh Pad Mist Eliminator Ss316l 750mm



Gas Liquid Separator Mesh Pad Mist Eliminator Ss316l 750mm

Description
Product Name: Demister Pad Material: SS316L
Diameter: 750mm Advantage: Fast Delivery
Feature: Small Round Size Demister Pad Use: Gas Liquid Separator
Size: Any Size As Per Order Packing: Wooden Carton
High Light:

mesh pad mist eliminator ss316l

,

mesh pad mist eliminator 750mm

,

gas liquid separator demister pad





SS316L 750mm Round Type Metal Knitted Wire Mes Demister Pad

Demister pads are made to any size and shape from a wide range of materials. The materials are metal and non-metal. Stainless steels and exotic alloys are fully annealed to provide maximum corrosion resistance.

Based on years of actual in-plant performance, our factory engineers use special families of mesh styles for particular equipment and processes to meet customer efficiency requirements.



Demister pad vapor liquid separator Specifications in this case



Item Value Unit
Material SS316L /
Shape & Size Φ750 mm
Mesh Thickness 100 mm
Demsiter Height 150 mm
Wire Diameter 0.28 mm
Mesh Density 176 kg/m3
Void Fraction 0.978 /
Specific Area 315 m2/m3
Grids 25*3 flat bar mm



How a demister pad works?


1. A vapor stream carrying entrained liquid droplets passes through a demister pad.
The vapor moves freely through the knitted mesh.
2. The inertia of the droplets causes them to contact the wire surfaces and coalesce.
3. The large, coalesced droplets formed in the mesh ultimately drain and drop to the vessel bottom



Applications of Ti mesh demister pad:



1. Reduce loss of valuable chemicals
2. Increase throughput capacity
3. Improve product purity
4. Minimize contamination
5. Provide equipment protection
6. Reduce air pollution

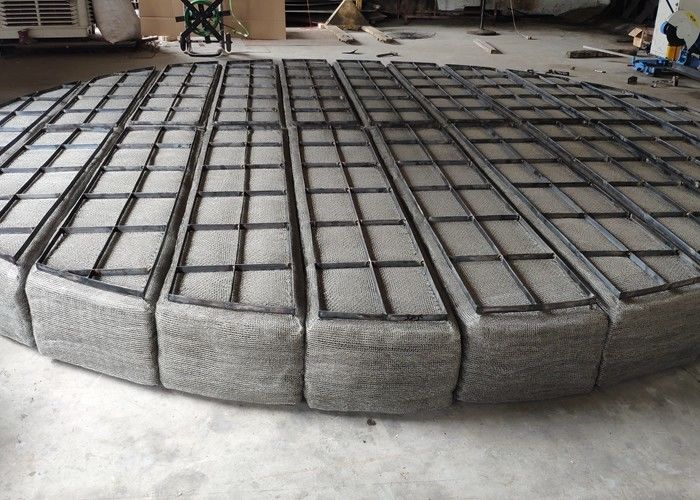

Gas Liquid Separator Mesh Pad Mist Eliminator SS316L 750mm 0
