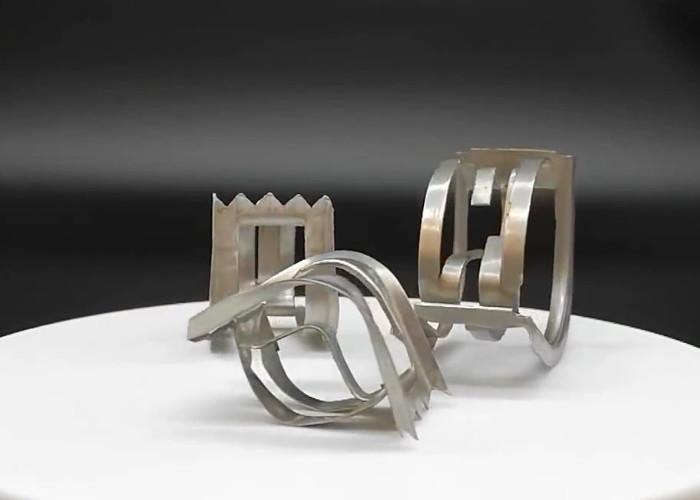

25×25×0.4mm Metal Random Packing Stainless Steel Raschig Rings

Basic Information
Place of Origin: Anping, China
Brand Name: Yuanqiao
Certification: ISO9001
Model Number: YQ-99
Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Wooden boxes
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Detail Information
Product Name: Metal Random Packing Material: Stainless Steel 304, 316L, Etc.
Model Number: Metal Intalox Saddles Shape: Raschig Ring
Size: 16# 25# 40# 50# 70# Application: Absorption , Scrubbing , Stripping
Type: Catalyst Beds Keyword: Metal Rashing Ring
High Light:

Metal Random Packing raschig rings

,

Metal Random Packing 25×25×0.4mm

,

25×25×0.4mm Stainless Steel Raschig Rings


Product Description

Distillation Column 316 Metal Random Packing Pall Ring 25 × 25 × 0.4 Mm



Distillation Column 316 Metal Random Packing Pall Ring 25 × 25 × 0.4 Mm

Description
Product Name: Distillation Column 316 Metal Random Packing Pall Ring 25 × 25 × 0.4 Mm Size: 1 In / 25 Mm
Wall Thickness: 0.4 Mm Material: SS304
Application: Distillation Tower Packing Warranty: Lifetime Online Service
High Light:

Distillation Column Metal Random Packing

,

316 Metal Random Packing Pall Ring

,

25 × 25 × 0.4 Mm Metal Pall Ring





Distillation Column 316 Metal Random Packing Pall Ring 25 × 25 × 0.4 Mm

1. Metal Pall Ring Basic Info:

Pall ring packing has the advantages of large capacity, small resistance, high separation efficiency and large operation flexibility. Under the same pressure reduction, the treatment capacity can be more than 50% larger than that of raschig ring. The tower height can also be reduced, and the use of pall ring can save 20% - 40% packing volume compared with raschig ring.



2. 25 mm Metal Pall Ring Specification:



Size

Dia.*Height (mm)

Thickness

mm

Pack No.

(m3)

Pack Density

(kg/m3)

Specific Area (m2/m3)

Void Volume

%

Dry Packing Factor
16*16 0.3 214000 396 362 94.9 423
25*25 0.4 51940 393 219 95.0 255
38*38 0.6 15180 318 146 95.9 165
50*50 0.8 6500 314 109 96.0 124
76*76 1.2 1830 308 71 96.1 80





3. Pall ring packing application

Hualai pall rings are available in several sizes as indicated on our design sheets to suit most commercial applications. They range in size from 10mm to 76mm or equivalent. It is an essentially a design consideration in specifying a packing size based on capacity and efficiency requirements. The nominal packing size specified should however not be greater than 1/10th of the column diameter.

What role does Hualai pall ring packing play in waste gas treatment? When the pall ring is filled in the purification tower, what is the effect of demisting? The packing free volume of pall ring is large, and the packing layer can hold a large amount of liquid for a long time, so as to increase the contact time of gas-liquid phase and improve the mass transfer efficiency of packing. Large free volume, large flow, high quality and high efficiency. It is widely used in chemical packing tower, dust removal, sewage treatment, air purification, waste gas treatment tower and other environmental protection industries. Pall rings are filled on the supporting layer and stacked freely. In addition to effectively reducing the moisture content in waste gas, it is easy to maintain, reduces the corrosion rate of subsequent pipelines, and improves the surrounding working environment.



4. Metal Pall Ring Features:



Easily wettable

High resistance to fouling

High temperature endurable

High temperature applications

Mechanically robust, lesser probability of breakage

Good liquid/gas distribution and high mass transfer efficiency
